Fuel Level Sensor Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

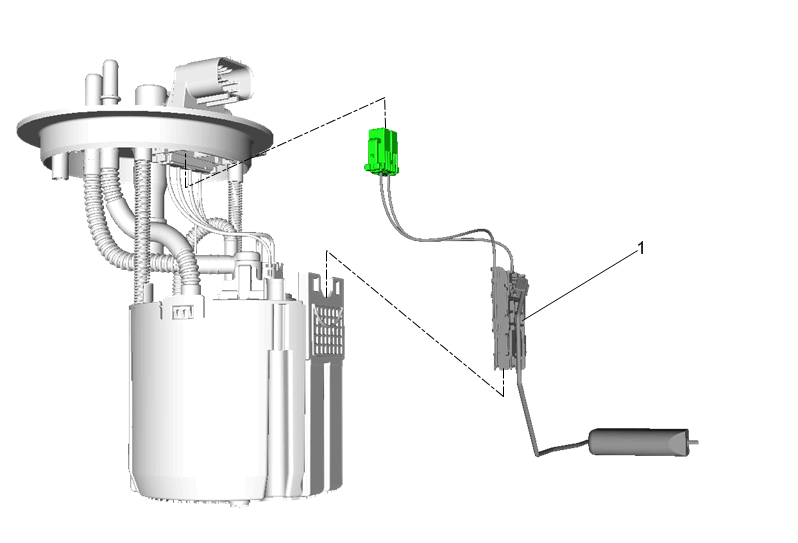

Fig 1: Fuel Level Sensor (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Remove Fuel Tank Fuel Pump Module. Refer to Fuel Tank Fuel Pump Module Replacement (AWD)
1	Fuel Level Sensor Procedure Release tabs and slide fuel level sensor up to remove. Disconnect the electrical connector.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Remove Fuel Tank Fuel Pump Module. Refer to Fuel Tank Fuel Pump Module Replacement (AWD)

Fuel Level Sensor

Procedure
