Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Special Tools
    GM4353260Courtesy of GENERAL MOTORS COMPANY
  1. Remove the pressure spindle (2) from the EN-50885-2  fixing tool (1).
    2. Fig 2: Fuel Injection Pump Seal Ring And Fuel Injection Pump Sealing Groove
    GM4353262Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW fuel injection pump seal ring (1) to the fuel injection pump sealing groove (2).

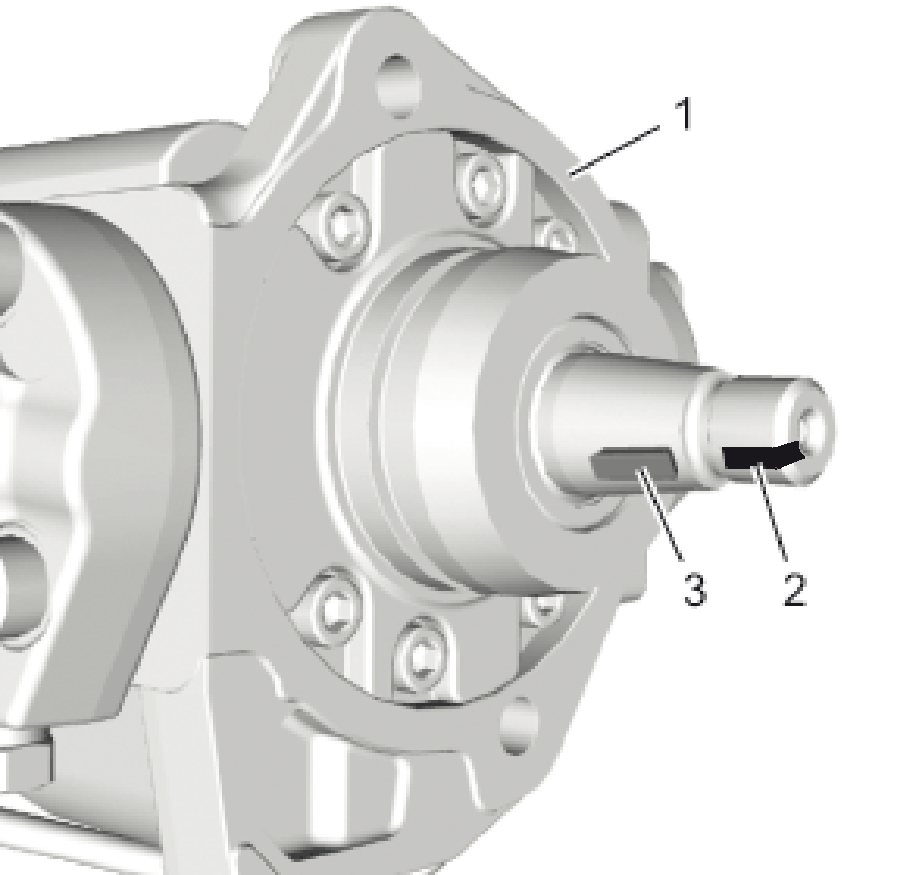

    3. Fig 3: Mark Position Of Wedge With Paint Mark On End Of Fuel Injection Fuel Pump Shaft
    GM4883180Courtesy of GENERAL MOTORS COMPANY
  3. Mark the position of the wedge (3) with a paint mark (2) on the end of the shaft of the fuel injection fuel pump (1).
    4. Fig 4: Fuel Injection Pump, Fuel Injection Pump Sprocket And Sprocket Groove
    GM4353267Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Position the fuel pump shaft in order to align the wedge with the fuel injection pump sprocket groove.

  4. Position the fuel injection pump (2) to the fuel injection pump sprocket and the sprocket groove (1).
    5. Fig 5: Fuel Injection Pump Sprocket, Paint Mark And Sprocket Groove
    GM4353266Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a mirror to see the fuel injection pump sprocket from the transmission side.

  5. Position the fuel injection pump to the fuel injection pump sprocket (2).
    1. Turn the fuel injection pump so that the paint mark (1) matches with the sprocket groove (3).
    2. Press in the fuel injection pump.
    6. Fig 6: Fuel Injection Pump Bolts
    GM4353268Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  6. Install and tighten Fuel Injection Pump Bolts (1) (Qty: 2) to 25 N.m (18 lb ft)
    7. Fig 7: Fuel Injection Pump Drive Pulley Nut
    GM4353259Courtesy of GENERAL MOTORS COMPANY
  7. Install Fuel Injection Pump Drive Pulley Nut (1)
    8. Fig 8: Extension And Special Tool
    GM4353258Courtesy of GENERAL MOTORS COMPANY
  8. Install a 1/2 inch-drive extension (1) to the EN-50885-2  fixing tool (2) to counterhold.
  9. Tighten Fuel Injection Pump Drive Pulley Nut to 64 N.m (47 lb ft)
  10. Remove the 1/2 inch-drive extension (1).
  11. Remove EN-50885-2  fixing tool (2)

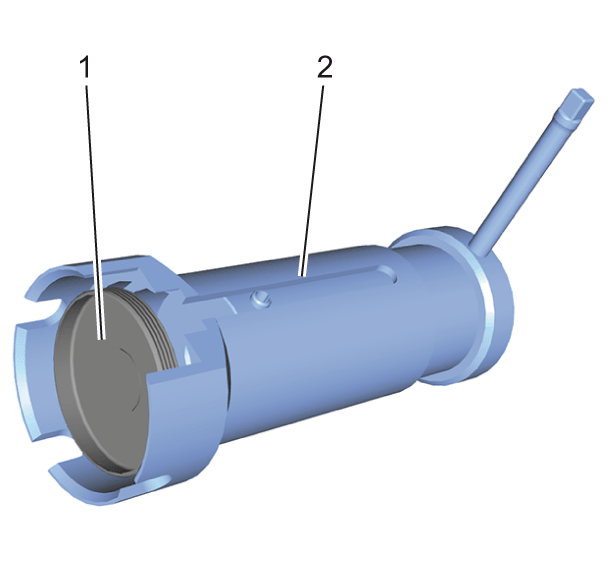

    12. Fig 9: Fuel Injection Pump Sprocket Access Hole Plug And Special Tool
    GM4585089Courtesy of GENERAL MOTORS COMPANY
  12. Install the NEW fuel injection pump sprocket access hole plug (1) onto the EN-50885-1  installer (2).
    13. Fig 10: Special Tools
    GM4375930Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the EN-50885-1  installer on the timing chain lower housing rests against.

  13. Install the fuel injection pump sprocket access hole plug by hitting the handle (1) of the EN-50885-1  installer (2).
    14. Fig 11: Range Selector Lever Cable
    GM4213937Courtesy of GENERAL MOTORS COMPANY
  14. Install Range Selector Lever Cable (1) @ Transmission Range Selector Lever Cable Bracket

    Push the range selector lever cable into the bracket.

  15. Install Range Selector Lever Cable (1) @ Range Selector Lever Cable Lever
    16. Fig 12: Engine Wiring Harness Bracket And Transmission Bolt
    GM4708379Courtesy of GENERAL MOTORS COMPANY
  16. Reposition Engine Wiring Harness Bracket (2)
  17. Install and tighten Transmission Bolt (1) to 58 N.m (43 lb ft)
    18. Fig 13: Charge Air Bypass Regulator Solenoid Valve Inlet Tube And Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve
    GM4199152Courtesy of GENERAL MOTORS COMPANY
  18. Connect Charge Air Bypass Regulator Solenoid Valve Inlet Tube (2) @ Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve (1)
    19. Fig 14: Electrical Connector
    GM4353252Courtesy of GENERAL MOTORS COMPANY
  19. Connect the electrical connector. (1)

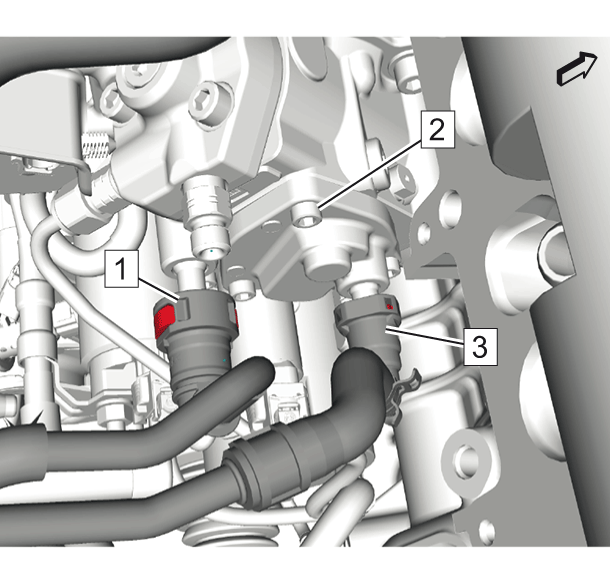

    20. Fig 15: Fuel Feed Pipe, Fuel Injection Pump And Diesel Fuel Separator
    GM4377003Courtesy of GENERAL MOTORS COMPANY
  20. Remove the closure plugs from all connections.
  21. Connect Diesel Fuel Separator (3) @ Fuel Injection Pump (2). Refer to Plastic Collar Quick Connect Fitting Service
  22. Connect Fuel Feed Pipe (1) @ Fuel Injection Pump (2). Refer to Plastic Collar Quick Connect Fitting Service
  23. Install the auxiliary fluid accumulator. Refer to Auxiliary Fluid Accumulator Replacement (Equinox)Auxiliary Fluid Accumulator Replacement (Terrain)
  24. Install the intake manifold. Refer to Intake Manifold Replacement
  25. Install the engine control module. Refer to Engine Control Module Bracket Replacement
  26. Check the fuel system for leaks. Refer to Fuel Leak Diagnosis
  27. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
  28. If replacing, perform the high pressure fuel correction reset. Refer to High Pressure Fuel Correction Reset
