Fuel Injection Pump Metering Valve Replacement

WARNING: This page is about a different variant/trim than selected.

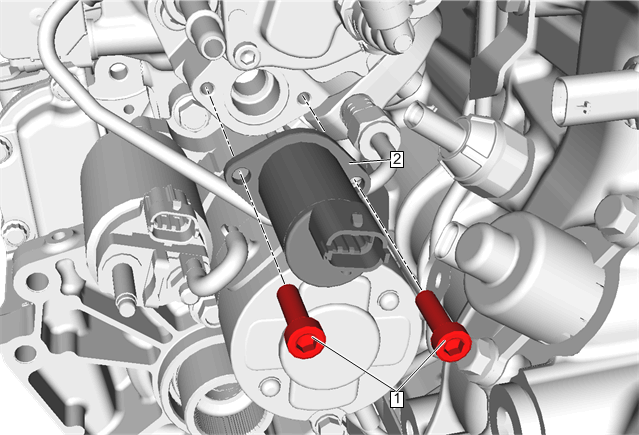

Fig 1: Fuel Injection Pump Metering Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Intake Manifold. Refer to Intake Manifold Replacement
1	Fuel Injection Pump Metering Valve Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Injection Pump Metering Valve Procedure Disconnect Fuel Injection Pump Metering Valve Electrical Connector Install a NEW O-ring seal. If replacing, perform the high pressure fuel correction reset. Refer to High Pressure Fuel Correction Reset

Callout

Component Name

Preliminary Procedure
Remove Intake Manifold. Refer to Intake Manifold Replacement

Fuel Injection Pump Metering Valve Fastener (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Injection Pump Metering Valve

Procedure

Disconnect Fuel Injection Pump Metering Valve Electrical Connector
Install a NEW O-ring seal.
If replacing, perform the high pressure fuel correction reset. Refer to High Pressure Fuel Correction Reset
