Fuel Cooler Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

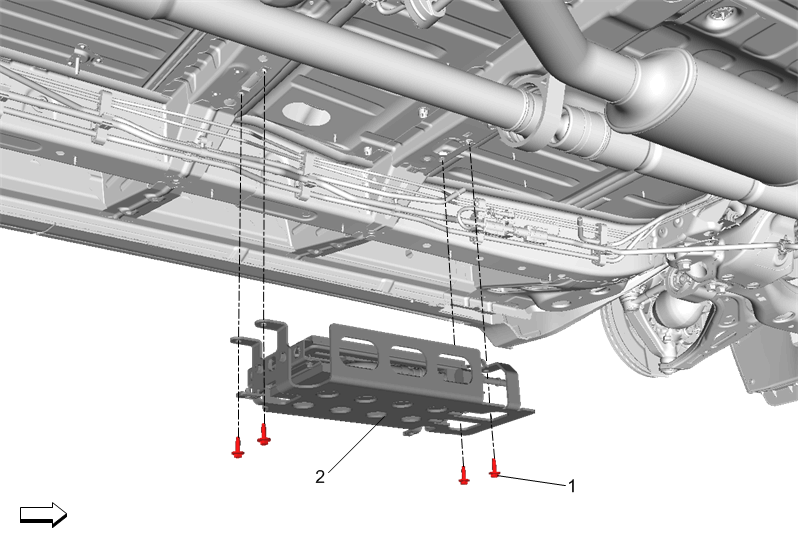

Fig 1: Fuel Cooler (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Remove Fuel Pump Power Control Module Bracket. Refer to Fuel Pump Power Control Module Bracket Replacement (AWD) Disconnect the fuel return pipes (Qty: 2). Refer to Metal Collar Quick Connect Fitting Service
1	Fuel Cooler Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Cooler

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Remove Fuel Pump Power Control Module Bracket. Refer to Fuel Pump Power Control Module Bracket Replacement (AWD)
Disconnect the fuel return pipes (Qty: 2). Refer to Metal Collar Quick Connect Fitting Service

Fuel Cooler Bolt (Qty: 4)

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Cooler
