Installation Procedure

WARNING: This page is about a different variant/trim than selected.

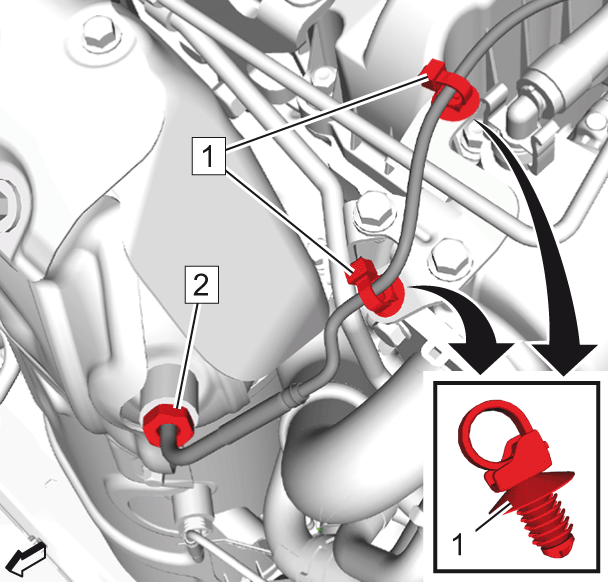

    Fig 1: Exhaust Temperature Sensor - Position 1 And Retainers
    GM4421804Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution

  1. Install and tighten Exhaust Temperature Sensor - Position 1 (2) to 45 N.m (33 lb ft)
  2. Install Wiring Harness Retainers (1) (Qty: 2)

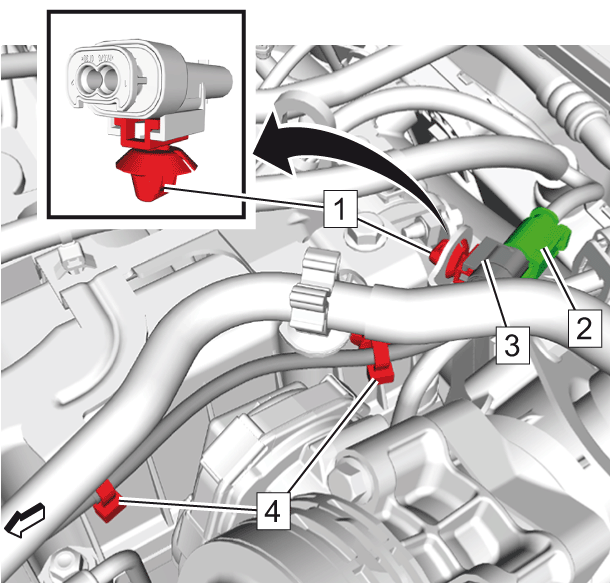

    3. Fig 2: Exhaust Temperature Sensor Electrical Connector And Retainers
    GM4421803Courtesy of GENERAL MOTORS COMPANY
  3. Install Wiring Harness Retainers (4) (Qty: 2)
  4. Install Exhaust Temperature Sensor Electrical Connector (3) @ Wiring Harness Retainer (1)
  5. Connect Exhaust Temperature Sensor Electrical Connector (2)
  6. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
  7. If replacing, perform the exhaust gas temperature sensor reset. Refer to Exhaust Gas Temperature Sensor Reset
  8. If replacing, perform the NOx catalyst reductant loading reset. Refer to NOx Catalyst Reductant Loading Reset
