Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Charge Air Cooler Outlet Air Hose, Throttle Body And Clamp
    GM4175071Courtesy of GENERAL MOTORS COMPANY
  1. Loosen Quick Connector Clamp (3)
  2. Remove Charge Air Cooler Outlet Air Hose (1) @ Throttle Body (2)
    3. Fig 2: Charge Air Bypass Regulator Solenoid Valve Inlet Tube And Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve
    GM4199152Courtesy of GENERAL MOTORS COMPANY
  3. Remove the charge air bypass regulator solenoid valve vacuum tube (2) from the exhaust gas recirculation (EGR) valve regulator solenoid valve (1).

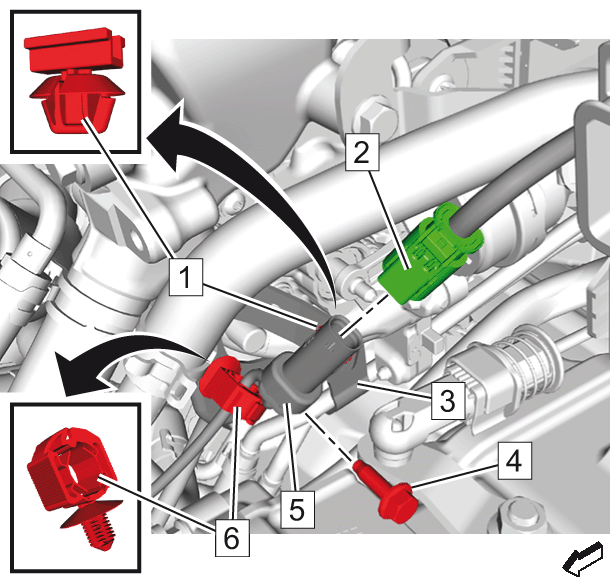

    4. Fig 3: Exhaust Temperature Sensor, Electrical Connector, Bracket, Bolts And Clips
    GM4422098Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect Exhaust Temperature Sensor Electrical Connector (2)
  5. Remove Wiring Harness Clips (1, 6) (Qty: 3) @ Bracket (3)
  6. Position aside Exhaust Temperature Sensor - Position 2 (5)
  7. Remove Exhaust Pressure Differential Sensor Bracket Bolt (4)
    8. Fig 4: Exhaust Pressure Differential Sensor, Hoses And Clamps
    GM4199154Courtesy of GENERAL MOTORS COMPANY
  8. Remove and DISCARD Clamps (2) (Qty: 2)
    9. NOTE:

    Mind the different hose diameters.

  9. Remove the 2 exhaust pressure differential sensor hoses (3) from the exhaust pressure differential sensor (1).
  10. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  11. Remove Underbody Front Air Deflector. Refer to Underbody Front Air Deflector Replacement (Equinox)Underbody Front Air Deflector Replacement (Terrain)

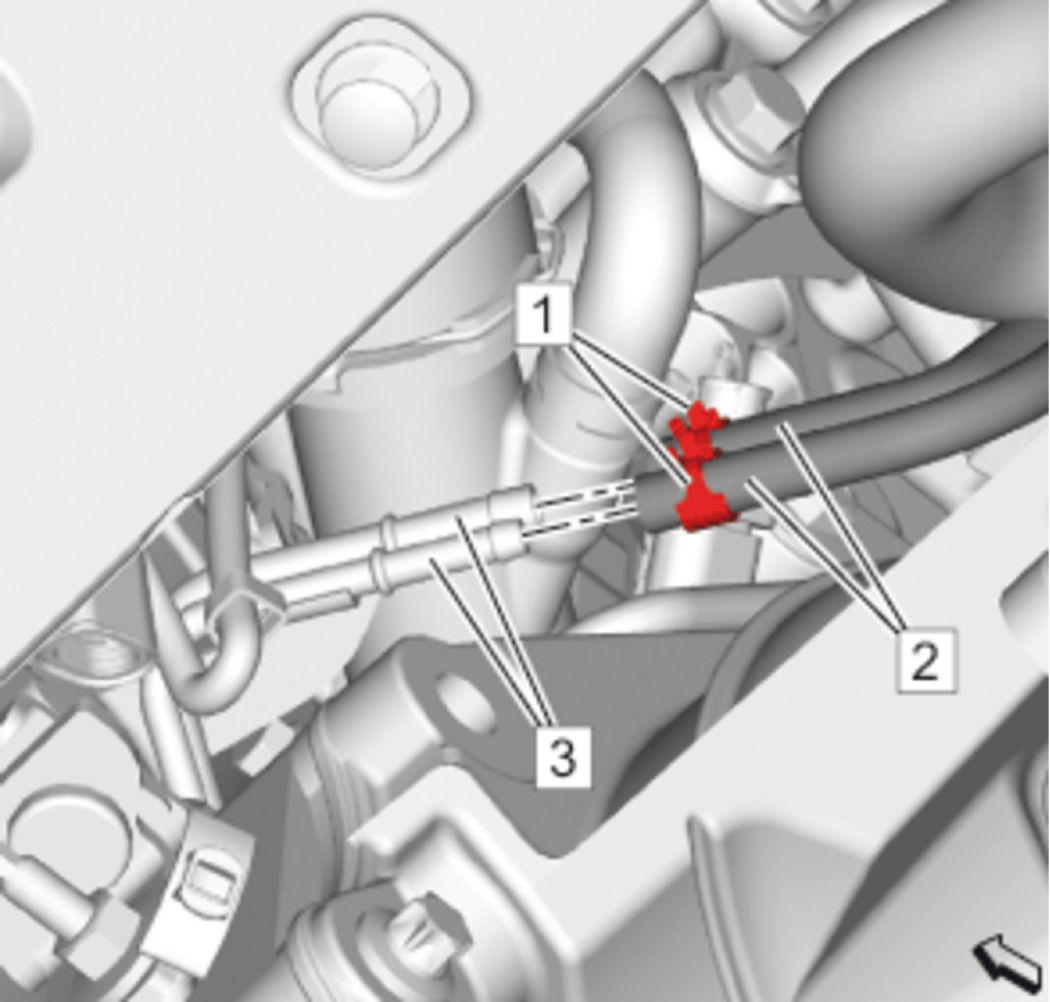

    12. Fig 5: Exhaust Pressure Differential Sensor Hoses And Pipes
    GM4199156Courtesy of GENERAL MOTORS COMPANY
  12. Disengage Clamps (1) (Qty: 2). Refer to Hose Clamp Replacement Guidelines - Spring Type
    13. NOTE:

    Mind the different hose diameters.

  13. Remove the 2 exhaust pressure differential sensor hoses (2) from the exhaust pressure differential sensor pipes (3).
  14. Remove Exhaust Pressure Differential Sensor Pipe
  15. Transfer components as necessary.
