Installation Procedure

WARNING: This page is about a different variant/trim than selected.

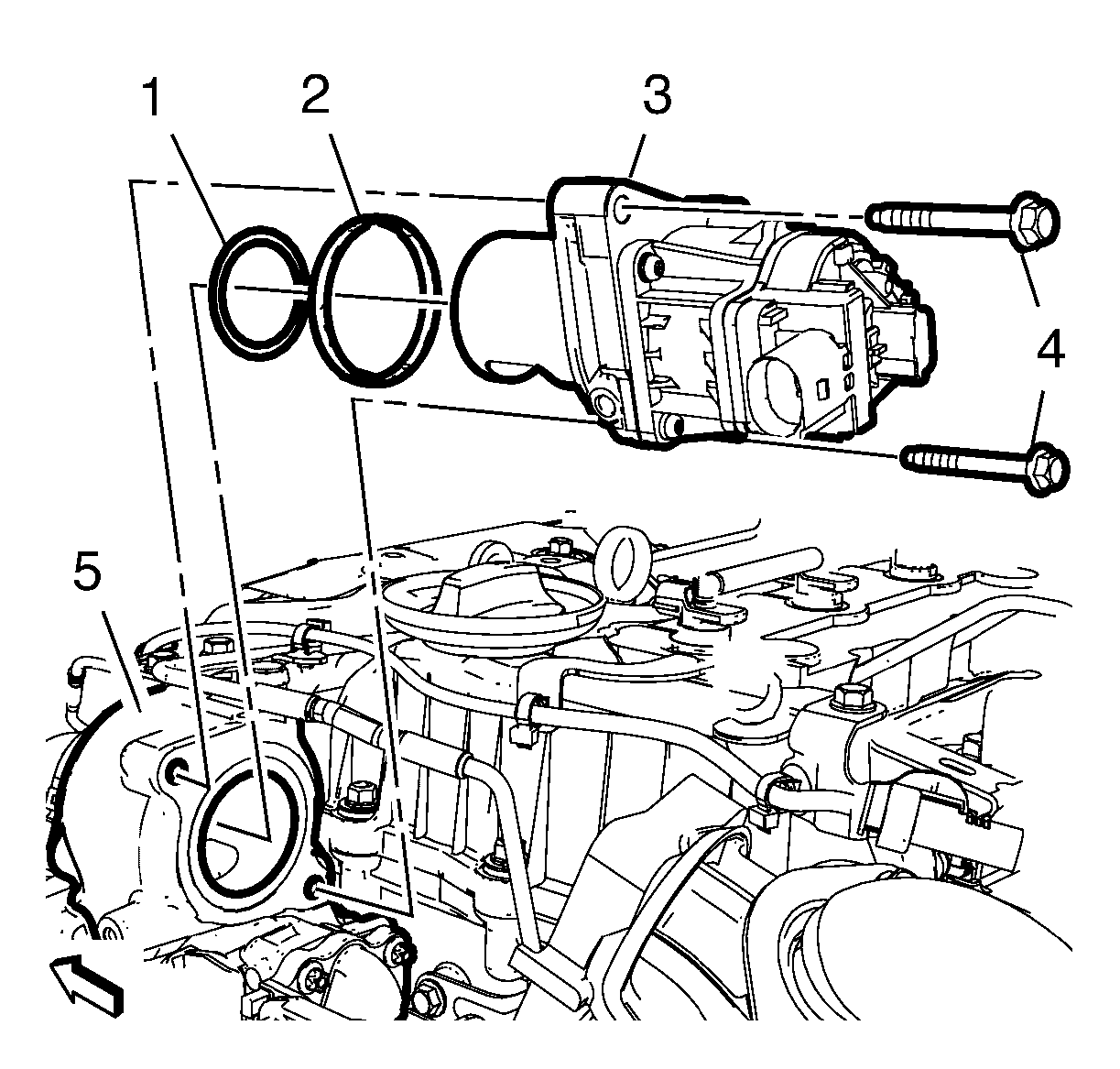

    Fig 1: EGR Valve, EGR Cooler Housing, Bolts And Gaskets
    GM3282652Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW EGR valve seat gasket (1) into the EGR cooler housing (5).
  2. Install a NEW EGR valve gasket (2).
  3. Install the EGR valve (3) to the EGR cooler housing (5).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the 2 EGR valve bolts (4) and tighten to 10 N.m (89 lb in).

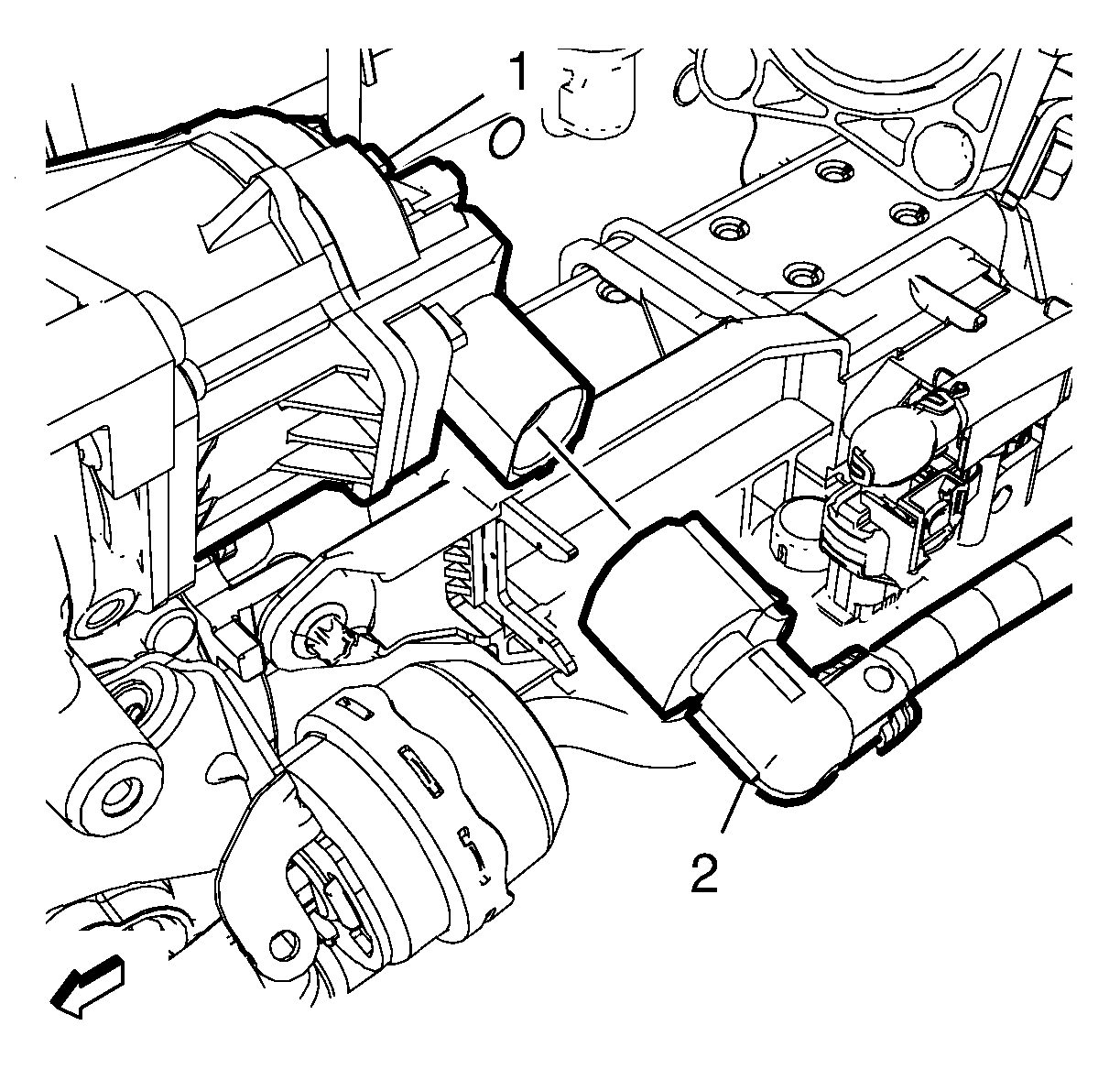

    5. Fig 2: Exhaust Gas Recirculation (EGR) Valve And Wiring Harness Plug
    GM3282651Courtesy of GENERAL MOTORS COMPANY
  5. Connect the EGR valve wiring harness plug (2) to the EGR valve (1).
  6. Install the throttle body assembly. Refer to Throttle Body Assembly Replacement .
