Removal Procedure

WARNING: This page is about a different variant/trim than selected.

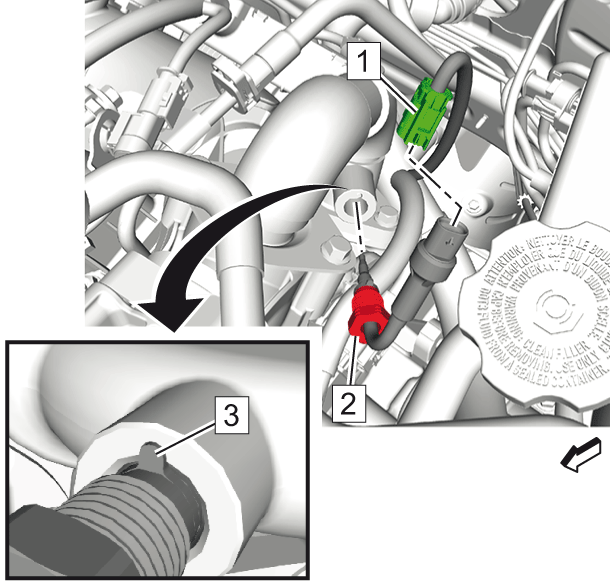

    Fig 1: Exhaust Gas Recirculation Cooler Temperature Sensor - Position 2 And Electrical Connector
    GM4376997Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect Exhaust Gas Recirculation Cooler Temperature Sensor Electrical Connector (1)
  2. Remove Exhaust Gas Recirculation Cooler Temperature Sensor - Position 2 (2)
