Installation Procedure

WARNING: This page is about a different variant/trim than selected.

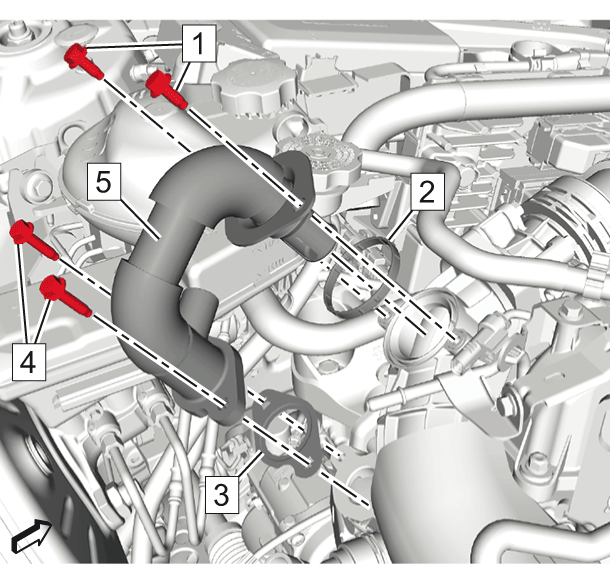

    Fig 1: Exhaust Gas Recirculation Cooler Outlet Pipe, Bolts And Gaskets
    GM4377020Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW Exhaust Gas Recirculation Cooler Outlet Pipe Seal (2)
  2. Install NEW Exhaust Gas Recirculation Cooler Outlet Pipe Gasket (3)
  3. Install Exhaust Gas Recirculation Cooler Outlet Pipe (5)
    4. CAUTION:

    Refer to Fastener Caution

  4. Install and tighten Exhaust Gas Recirculation Cooler Outlet Pipe Bolts (4) (Qty: 2) @ Exhaust Gas Recirculation Cooler to 10 N.m (89 lb in)
  5. Install and tighten Exhaust Gas Recirculation Cooler Outlet Pipe Bolts (1) (Qty: 2) @ Intake Manifold to 10 N.m (89 lb in)
    6. Fig 2: Exhaust Gas Recirculation Cooler Temperature Sensor - Position 2 And Electrical Connector
    GM4376997Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The guide lug (1) must fit the groove.

  6. Install and tighten Exhaust Gas Recirculation Cooler Temperature Sensor (2) to 45 N.m (33 lb ft)
  7. Connect the electrical connector. (1)
