Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Exhaust Gas Recirculation Cooler Housing, Bolts And Gasket
    GM4213962Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW gasket. (3)
  2. Install Exhaust Gas Recirculation Cooler Housing (1)
    3. CAUTION:

    Refer to Fastener Caution

  3. Install the 3 EGR cooler housing bolts (2, 4) and tighten to 25 N.m (18 lb ft).

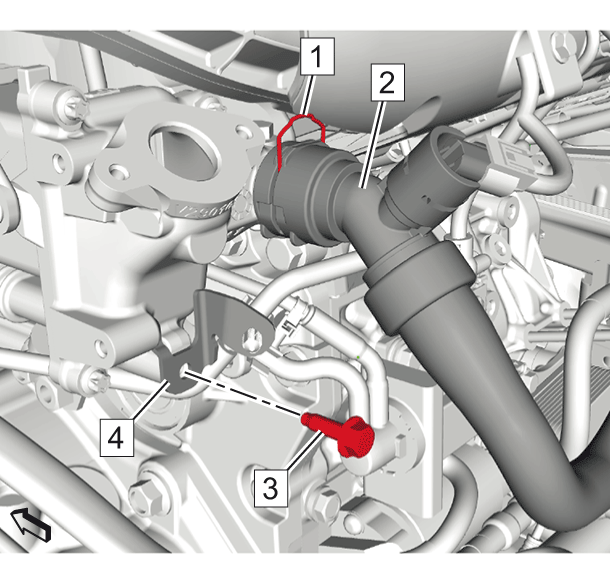

    4. Fig 2: Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Bracket, Heater Outlet Hose, Bolt And Clamp
    GM4377021Courtesy of GENERAL MOTORS COMPANY
  4. Reposition Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Bracket (4)
  5. Install the turbocharger wastegate actuator vacuum control solenoid valve bracket bolt (3) and tighten to 10 N.m (89 lb in).
  6. Install Heater Outlet Hose (2)
  7. Install Quick Connector Clamp (1)
    8. Fig 3: Exhaust Gas Recirculation Cooler Housing, Thermostat Bypass Hose And Clamp
    GM4213959Courtesy of GENERAL MOTORS COMPANY
  8. Install Thermostat Bypass Hose (3) @ Exhaust Gas Recirculation Cooler Housing (2)
  9. Install Thermostat Bypass Hose Clamp (1)
    10. Fig 4: Exhaust Manifold Pipe, Bolts And Gasket
    GM4213955Courtesy of GENERAL MOTORS COMPANY
  10. Install a NEW gasket. (2)
  11. Install the exhaust manifold pipe (1) to the EGR cooler housing.
  12. Install the 2 exhaust manifold pipe bolts (3) and tighten to 10 N.m (89 lb in).
    13. Fig 5: Turbocharger Actuator Pipe Bracket Bolt
    GM4213958Courtesy of GENERAL MOTORS COMPANY
  13. Install the turbocharger actuator pipe bracket bolt (1) and tighten to 10 N.m (89 lb in).
    14. Fig 6: Exhaust Pressure Differential Sensor And Bolt
    GM4213960Courtesy of GENERAL MOTORS COMPANY
  14. Reposition Exhaust Pressure Differential Sensor (1)
  15. Install and tighten Exhaust Pressure Differential Sensor Bolt (2) to 9 N.m (80 lb in)
    16. Fig 7: Charge Air Bypass Regulator Solenoid Valve Inlet Tube And Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve
    GM4199152Courtesy of GENERAL MOTORS COMPANY
  16. Connect Charge Air Bypass Regulator Solenoid Valve Inlet Tube (2) @ Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve (1)
    17. Fig 8: Intake Manifold Brace And Bolts
    GM4725034Courtesy of GENERAL MOTORS COMPANY
  17. Reposition Intake Manifold Brace (2)
  18. Install and tighten Intake Manifold Brace Bolts (1) (Qty: 4) to 10 N.m (89 lb in)
    19. Fig 9: Heater Inlet/Outlet Pipe Bracket And Bolt
    GM4724980Courtesy of GENERAL MOTORS COMPANY
  19. Install Heater Inlet and Outlet Pipe Bracket (2)
  20. Install and tighten Heater Inlet Pipe Bracket Bolt (1) to 9 N.m (80 lb in)

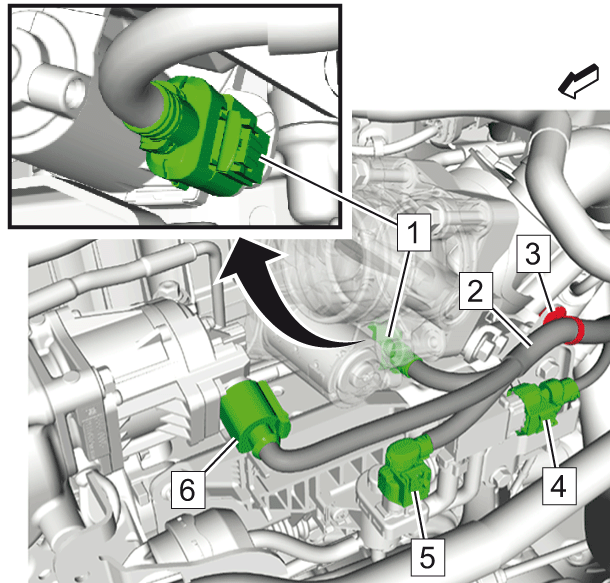

    21. Fig 10: Electrical Connectors, Engine Wiring Harness And Clip
    GM4377019Courtesy of GENERAL MOTORS COMPANY
  21. Connect the electrical connectors:
    1. Exhaust Gas Recirculation Valve (6)
    2. Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve (5)
    3. Exhaust Pressure Differential Sensor (4)
    4. Throttle Body (1)
  22. Reposition Engine Wiring Harness (2)
  23. Install Engine Wiring Harness Clip (3)

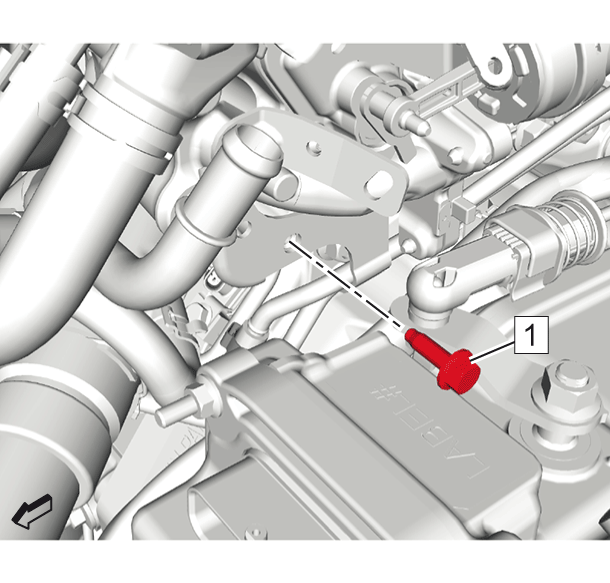

    24. Fig 11: Exhaust Pressure Sensor Pipe Bolt
    GM4377022Courtesy of GENERAL MOTORS COMPANY
  24. Install and tighten Exhaust Pressure Differential Sensor Bracket Bolt (1) to 9 N.m (80 lb in)

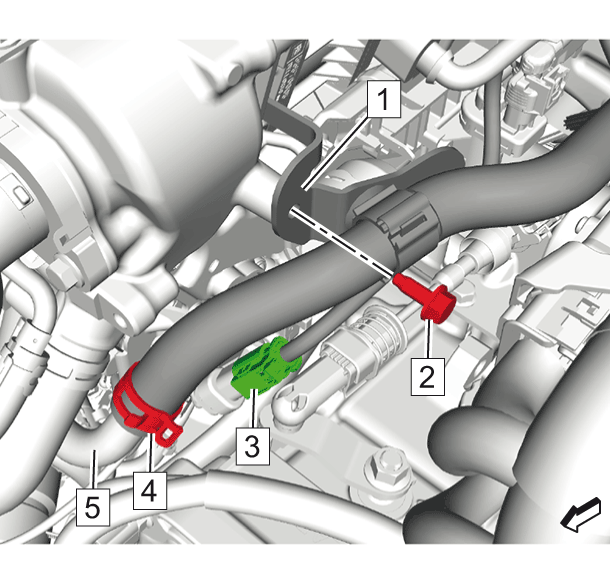

    25. Fig 12: Exhaust Temperature Sensor Electrical Connector and Radiator Surge Tank Components
    GM4377018Courtesy of GENERAL MOTORS COMPANY
  25. Reposition the radiator surge tank engine hose bracket (1) along with the radiator surge tank hose (4).
  26. Connect Radiator Surge Tank Overflow Hose (4) @ Thermostat Bypass Pipe (6)
  27. Install Radiator Surge Tank Overflow Hose Clamp (5)
  28. Connect Exhaust Temperature Sensor Electrical Connector (3)
  29. Install the radiator surge tank outlet hose bracket bolt (2) and tighten to 10 N.m (89 lb in).
    30. Fig 13: Exhaust Gas Recirculation Cooler Outlet Pipe, Bolts And Gaskets
    GM4377020Courtesy of GENERAL MOTORS COMPANY
  30. Install NEW Exhaust Gas Recirculation Cooler Outlet Pipe Gasket (3)
  31. Install NEW Exhaust Gas Recirculation Cooler Pipe Gasket (2)
  32. Install Exhaust Gas Recirculation Pipe (5)
  33. Install and tighten Exhaust Gas Recirculation Pipe Bolts (1, 4) (Qty: 4) to 10 N.m (89 lb in)

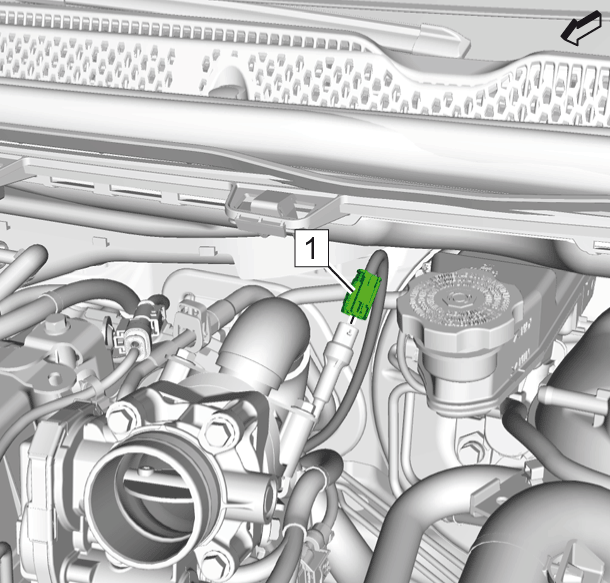

    34. Fig 14: Exhaust Gas Recirculation Cooler Temperature Sensor Electrical Connector
    GM4377024Courtesy of GENERAL MOTORS COMPANY
  34. Connect Exhaust Gas Recirculation Cooler Temperature Sensor Electrical Connector (1)
    35. Fig 15: Engine Coolant Air Bleed Hose, Connector And Retainer Clip
    GM4213952Courtesy of GENERAL MOTORS COMPANY
  35. Reposition Engine Coolant Air Bleed Hose (2)
  36. Install Engine Coolant Air Bleed Hose (2) @ Retainer Clip (3)
  37. Connect Engine Coolant Air Bleed Hose Connector (1)
    38. Fig 16: Charge Air Cooler Outlet Air Tube And Retaining Clip
    GM4695620Courtesy of GENERAL MOTORS COMPANY
  38. Install Charge Air Cooler Outlet Air Tube (2) @ Throttle Body. Refer to Charge Air Cooler Outlet Air Tube Replacement
  39. Fill the cooling system. Refer to Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (Static)
  40. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
