Installation Procedure

WARNING: This page is about a different variant/trim than selected.

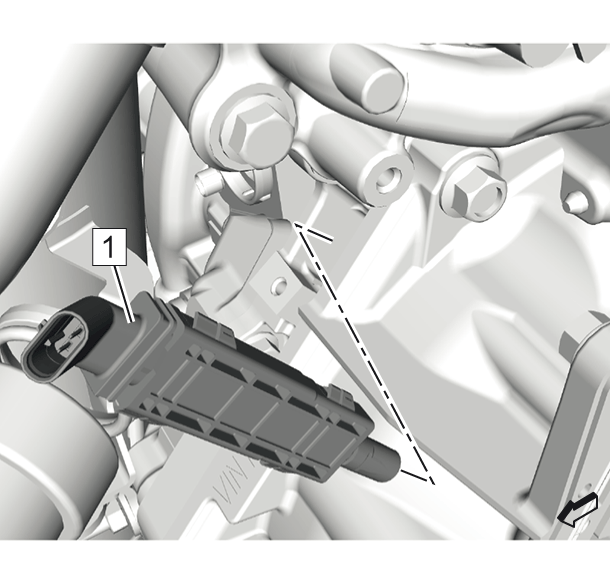

    Fig 1: Crankshaft Position Sensor
    GM4375966Courtesy of GENERAL MOTORS COMPANY
  1. Install Crankshaft Position Sensor (1)

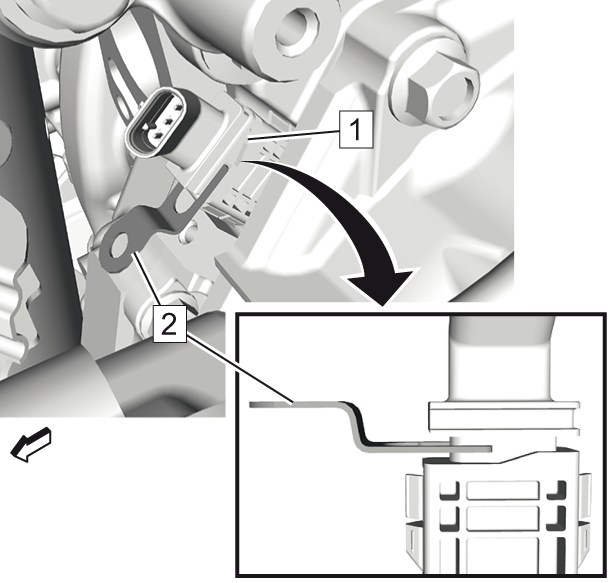

    2. Fig 2: Crankshaft Position Sensor Retainer Spring Into Correct Channel
    GM4375967Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Slightly lift the crankshaft position sensor to install the retainer spring.

  2. Install the crankshaft position sensor retainer spring (2) into the correct channel (1) of the crankshaft position sensor.

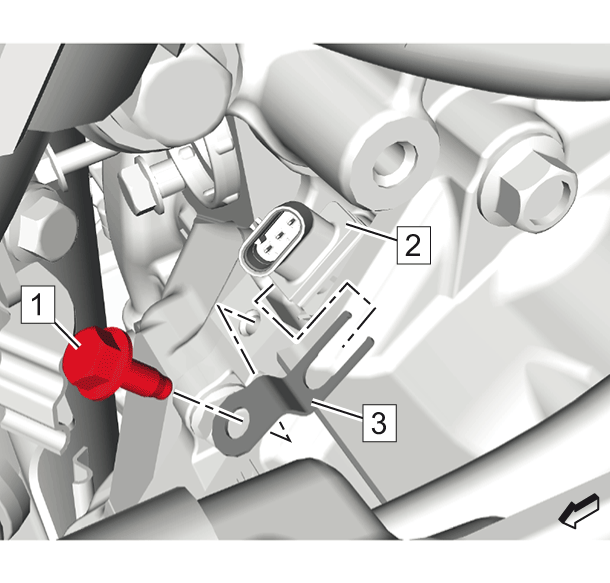

    3. Fig 3: Crankshaft Position Sensor, Bolt And Retainer Spring
    GM4375965Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  3. Install and tighten Crankshaft Position Sensor Bolt (1) to 10 N.m (89 lb in)

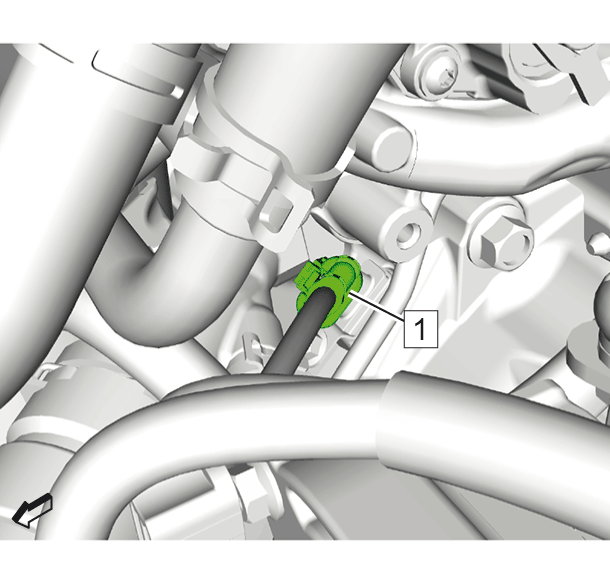

    4. Fig 4: Electrical Connector
    GM4375968Courtesy of GENERAL MOTORS COMPANY
  4. Connect the electrical connector. (1)
  5. Install Exhaust Gas Recirculation Cooler Housing. Refer to Exhaust Gas Recirculation Cooler Housing Replacement
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
  7. Perform the crankshaft position reluctor ring learn. Refer to Crankshaft Position Variation Learn
