Charge Air Cooler Replacement

WARNING: This page is about a different variant/trim than selected.

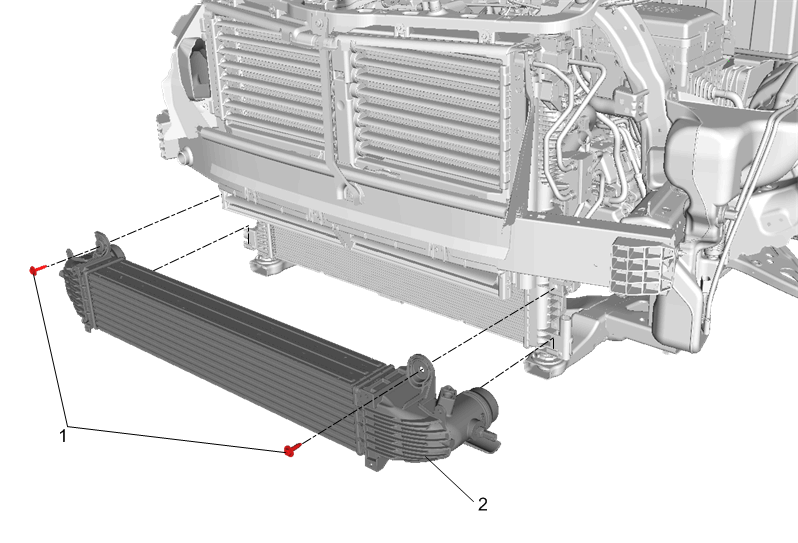

Fig 1: Charge Air Cooler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Radiator Air Lower Baffle. Refer to Radiator Air Lower Baffle Replacement (LH7 LTG LYX) Disconnect Charge Air Cooler Outlet Air Tube @ Charge Air Cooler. Refer to Charge Air Cooler Outlet Air Tube Replacement Disconnect Charge Air Cooler Inlet Air Tube @ Charge Air Cooler. Refer to Charge Air Cooler Inlet Air Tube Replacement Disconnect the electrical connector.
1	Charge Air Cooler Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Charge Air Cooler Procedure Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure

Remove Radiator Air Lower Baffle. Refer to Radiator Air Lower Baffle Replacement (LH7 LTG LYX)
Disconnect Charge Air Cooler Outlet Air Tube @ Charge Air Cooler. Refer to Charge Air Cooler Outlet Air Tube Replacement
Disconnect Charge Air Cooler Inlet Air Tube @ Charge Air Cooler. Refer to Charge Air Cooler Inlet Air Tube Replacement
Disconnect the electrical connector.

Charge Air Cooler Bolt (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Charge Air Cooler
Procedure
Transfer parts as necessary.
