Accelerator Pedal Position Sensor Replacement
WARNING: This page is about a different variant/trim than selected.

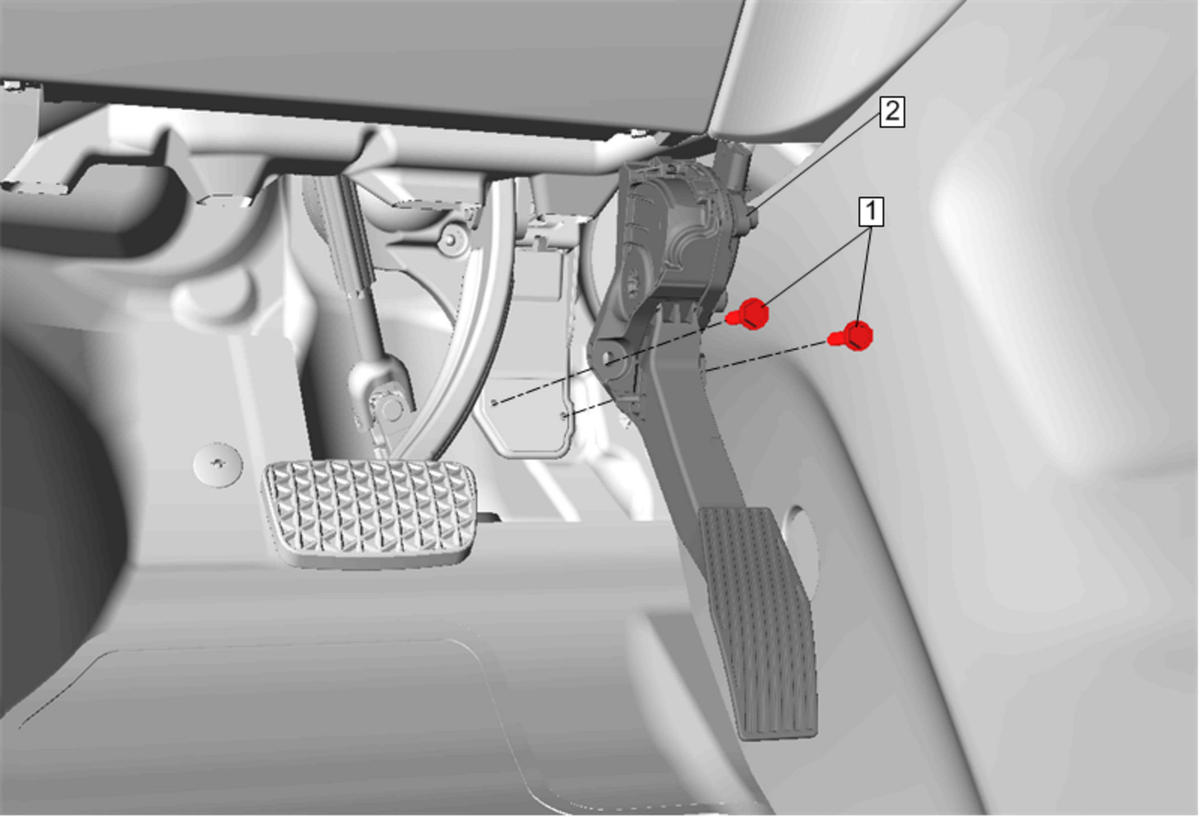

| Callout | Component Name |
|---|---|
| 1 | Accelerator Pedal Position Sensor Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Accelerator Pedal Position Sensor Procedure Disconnect the electrical connector. |
