Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Raise the transmission with the transmission jack and position the transmission to the engine.

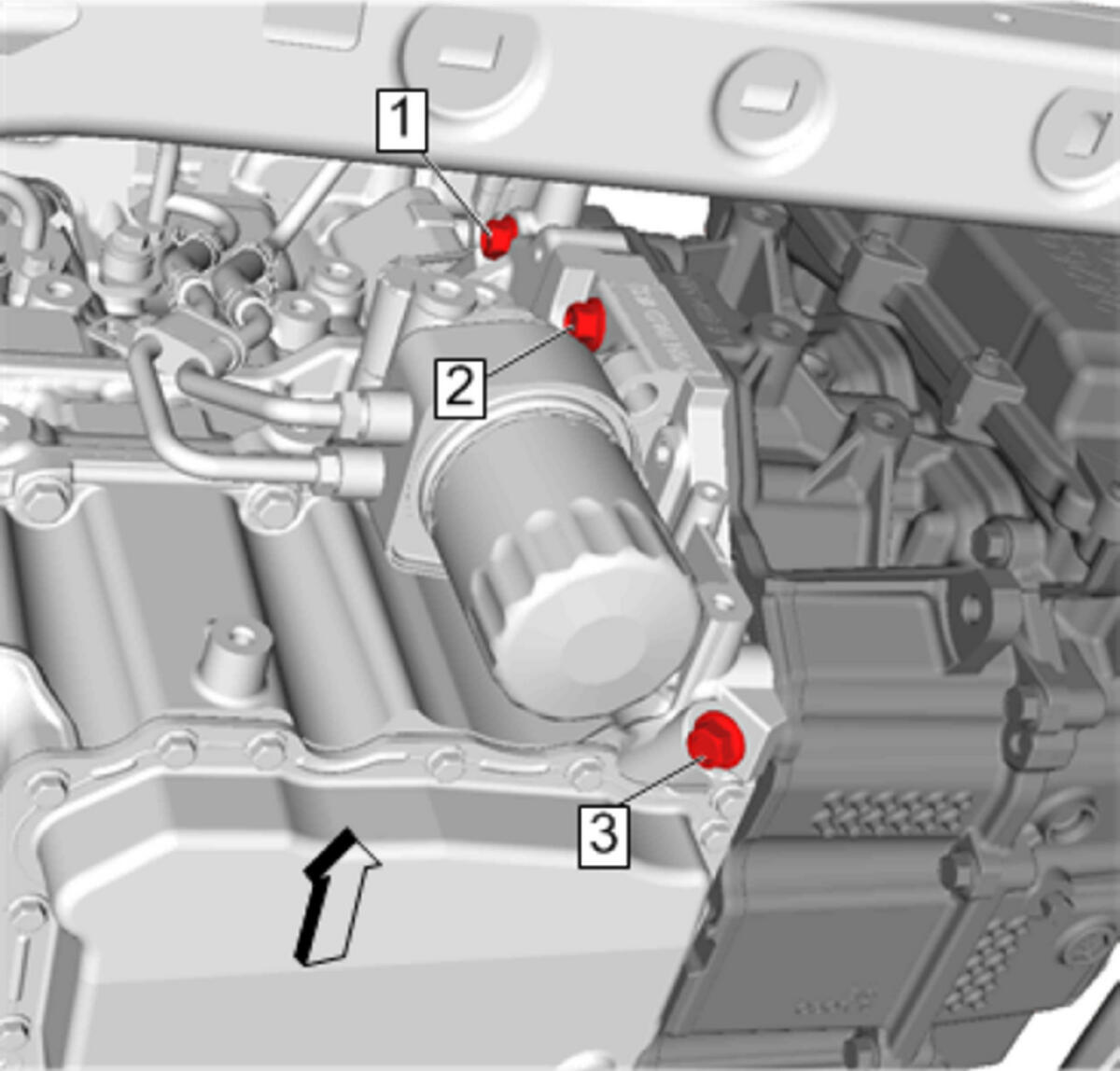

- Install the transmission bolts (1, 2, 3) and tighten to 58 N.m (43 lb ft).

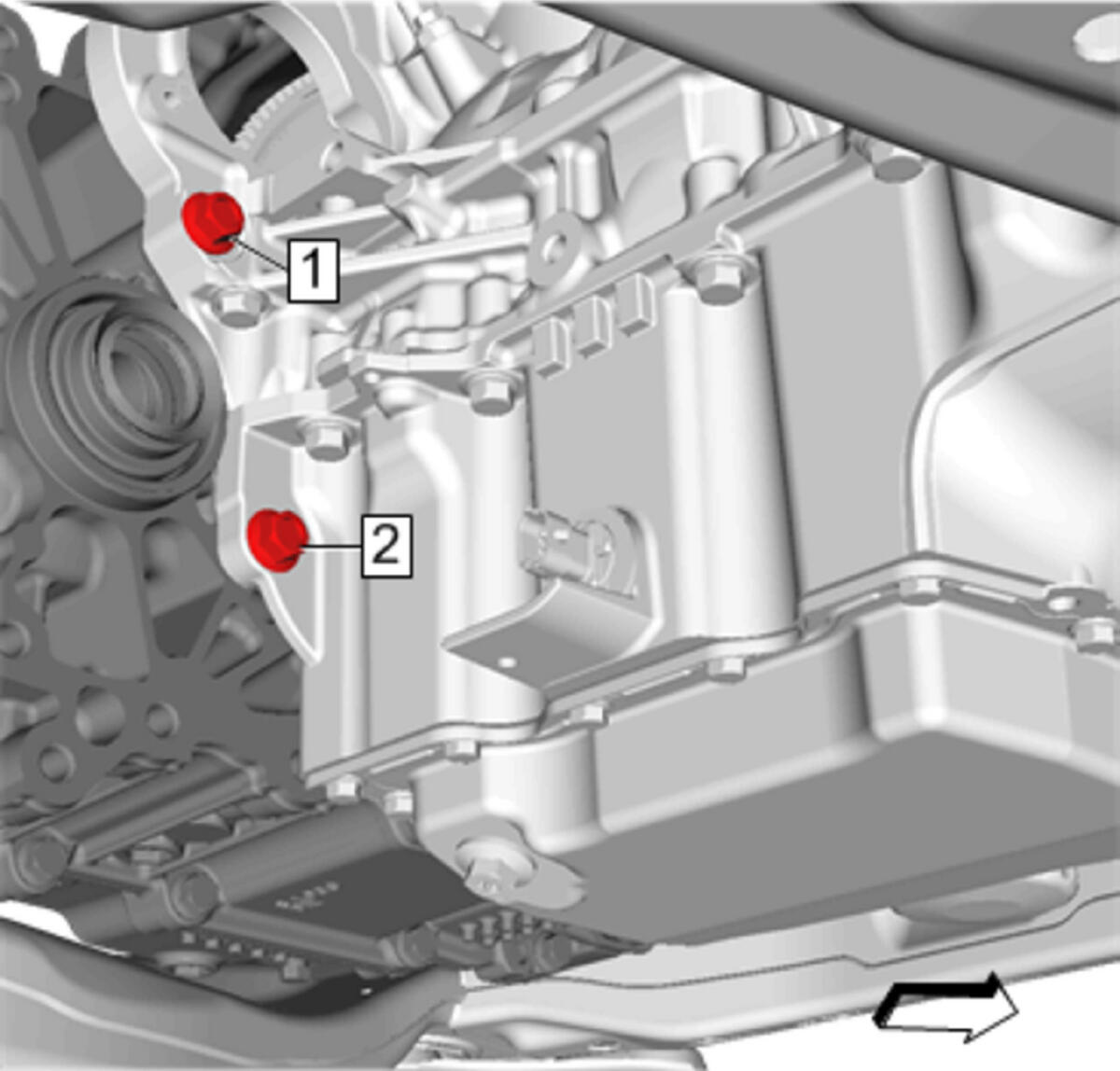

- Install the front transmission to engine bolt (1, 2) and tighten to 58 N.m (43 lb ft).
- Install the oil pump flow control valve heat shield, if equipped. Refer to Oil Pump Flow Control Valve Heat Shield Replacement
- Remove the transmission jack.
- Align the mark of the flywheel to the mark on the torque converter for reassembly.
- Install the torque converter to flywheel bolts (1) and tighten to 60 N.m (44 lb ft).
- Install the auxiliary water pump and bracket to the transmission. Refer to Auxiliary Water Pump Replacement (LYX with KL9)Auxiliary Water Pump Replacement (LH7 Equinox)Auxiliary Water Pump Replacement (LTG with KL9)Auxiliary Water Pump Replacement (LH7 Terrain)
- Install the three way catalytic converter. Refer to Warm Up Three-Way Catalytic Converter Replacement (LYX)Warm Up Three-Way Catalytic Converter Replacement (LTG)
- Install the starter. Refer to Starter Replacement (LYX - Front Wheel Drive)Starter Replacement (LTG - Front Wheel Drive)Starter Replacement (LH7 - Front Wheel Drive)
- Install the left transmission mount to the transmission. Transmission Mount Replacement (Left Side M3U) Transmission Mount Replacement (Left Side M3D/M3H)
- Install the wheel drive shafts to the transmission. Refer to Front Wheel Drive Half Shaft Replacement - Left Side , and Front Wheel Drive Half Shaft Replacement - Right Side (M3U, MHG, MNH, MNK with FWD)Front Wheel Drive Half Shaft Replacement - Right Side (M3D, M3H with FWD)
- Install the drivetrain and front suspension cradle. Refer to Drivetrain and Front Suspension Cradle Replacement (Front Wheel Drive)
- Install the transmission mount strut bracket to the transmission. Refer to Transmission Mount Strut Bracket Replacement (Front Wheel Drive)
- Remove the engine support fixture. Refer to Engine Support Fixture

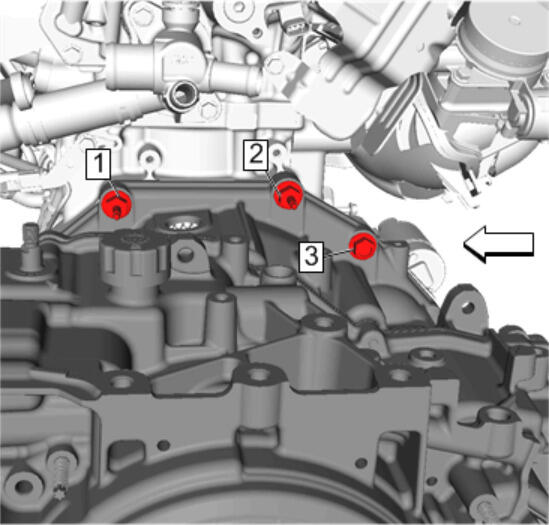

- Install the upper transmission to engine bolts (1, 2, 3) and tighten to 58 N.m (43 lb ft).
- Connect the control valve body transmission control module electrical connector (1), then clip the wiring harness to the cover.
- Install the transmission fluid cooler outlet pipes (2) to the transmission. Refer to Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MNH, MHG)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (M3D, M3H, M3U)
- Install the transmission fluid cooler inlet pipe nut (1) to the transmission and tighten to 9 N.m (80 lb in).
- Clip the engine wiring harness to the transmission.
- Install the transmission range select lever cable to the transmission. Refer to Automatic Transmission Range Selector Lever Cable Replacement
- Adjust the automatic transmission range selector lever cable. Refer to Range Selector Lever Cable Adjustment
- Fill the transmission with fluid. Refer to Transmission Fluid Drain and Fill
- If a NEW TCM has been installed into the vehicle, the NEW module needs to be reprogrammed. Refer to Service Programming System (SPS)
- Transmission internal service/overhaul
- Valve body repair or replacement
- Control solenoid valve assembly replacement
- TCM software/calibration update
- Any service in response to a shift quality concern
- Perform the Transmission Service Fast Learn procedure. Refer to Transmission Service Fast Learn Procedure
- Reprogram the transmission. Refer to Solenoid Valve Characterization Reprogramming
- Road test the vehicle.
CAUTION:
Refer to Fastener Caution .
NOTE:
If reusing the torque converter bolts, clean the threads and apply threadlocker to the threads prior to installation. Adhesives, Fluids, Lubricants, and Sealers
NOTE:
The Transmission Adaptive Values Learn procedure must be performed when one of the following repairs have been made to the vehicle. Failure to perform the procedure after one of the following repairs may result in poor transmission performance, as well as transmission DTCs being set:
