Front Wheel Drive Shaft Oil Seal Replacement (Right Side)

WARNING: This page is about a different variant/trim than selected.

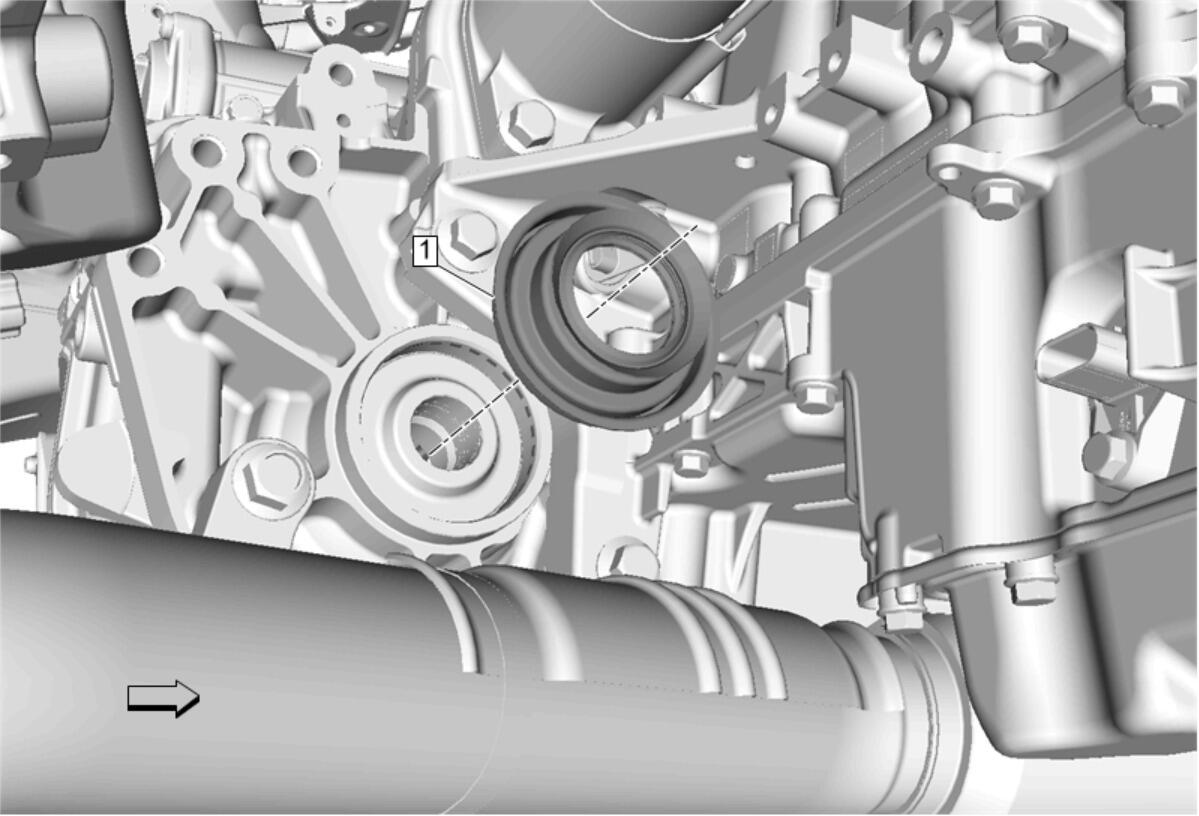

Fig 1: Front Wheel Drive Shaft Oil Seal (Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Wheel Drive Half Shaft - Right Side. Refer to Front Wheel Drive Half Shaft Replacement - Right Side (AWD)Front Wheel Drive Half Shaft Replacement - Right Side (M3U, MHG, MNH, MNK with FWD)Front Wheel Drive Half Shaft Replacement - Right Side (M3D, M3H with FWD)
1	Right Front Wheel Drive Shaft Oil Seal Procedure For seal removal use GE-6125-1B slide hammer with DT-23129 universal seal remover. For seal installation use GE-8092 driver handle with DT-47790 seal installer. Special Tools DT-23129 Universal Seal Remover DT-47790 Seal Installer GE-6125-1B Slide Hammer GE-8092 Driver Handle For equivalent regional tools, Special Tools .

Callout

Component Name

Right Front Wheel Drive Shaft Oil Seal

Procedure

For seal removal use GE-6125-1B slide hammer with DT-23129 universal seal remover.
For seal installation use GE-8092 driver handle with DT-47790 seal installer.

Special Tools

For equivalent regional tools, Special Tools .
