Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Range Selector Manual Park Release Cable And Cable Grommet Fasteners
    GM3825645Courtesy of GENERAL MOTORS COMPANY
  1. Install the electronic transmission range selector manual park release cable (1) through the cowl panel.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the electronic transmission range selector manual park release cable grommet fasteners (2) and tighten to 6 N.m (53 lb in).

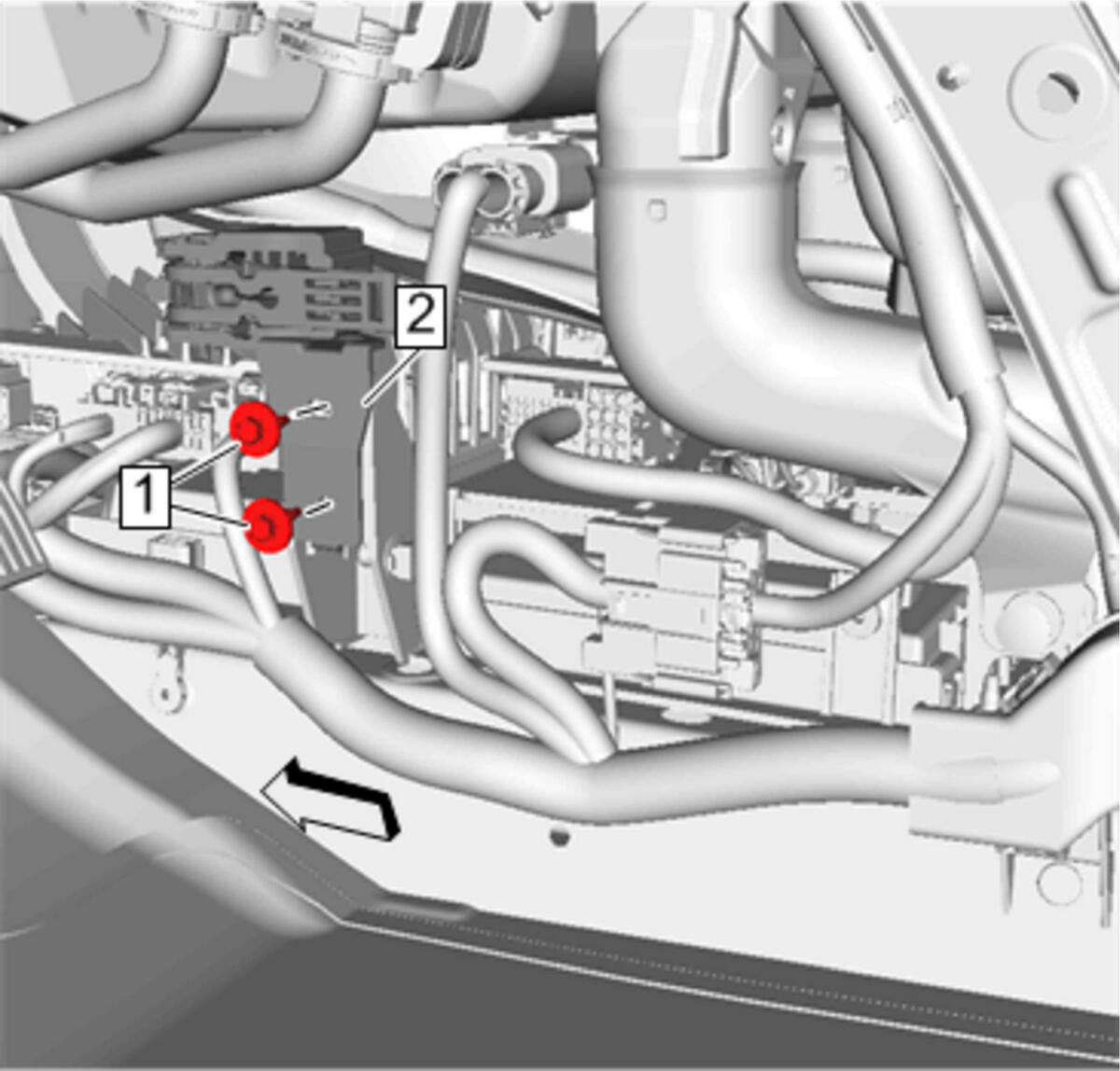

    3. Fig 2: Range Selector Manual Park Release Cable Handle And Retaining Bolts
    GM4830838Courtesy of GENERAL MOTORS COMPANY
  3. Position the electronic transmission range selector manual park release cable handle (2) to the bracket.
  4. Install the electronic transmission range selector manual park release cable handle fasteners (1) and tighten to 2.5 N.m (22 lb in).
  5. Install the front floor lower console. Refer to Front Floor Lower Console Replacement (Equinox)
  6. Position the front left carpet, if necessary.
  7. Install the electronic transmission range selector manual park release cable to the cable bracket on the transmission.
    8. Fig 3: Automatic Transmission Range Selector Lever Cable Terminal, Shift Lever And Clamp Bolt
    GM4592602Courtesy of GENERAL MOTORS COMPANY
  8. WARNING:

    After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury.

  9. Connect the electronic transmission range selector manual park release cable terminal (3) to the transmission manual shift lever (2).
  10. Install the electronic transmission range selector manual park release cable bolt (1) and tighten to 9 N.m (80 lb in).
