Control Valve Solenoid Body - Fluid Pan Side

WARNING: This page is about a different variant/trim than selected.

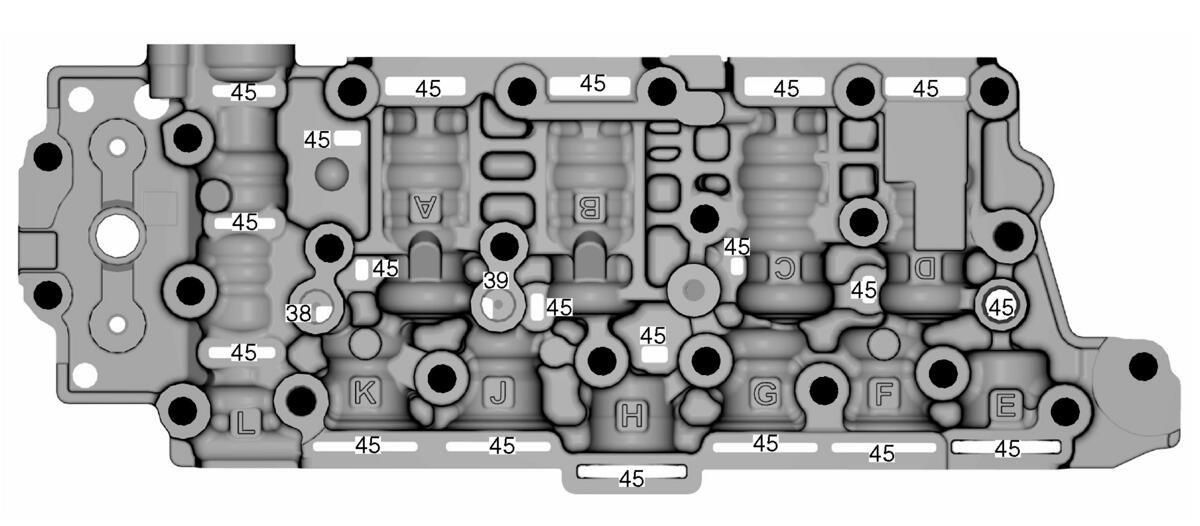

Fig 1: Control Valve Solenoid Body Fluid Passages - Fluid Pan Side
GM4593387Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
38 S38 Variable Force Solenoid Valve Signal
39 S4 Variable Force Solenoid Valve Signal
45 Exhaust
