Control Valve Body Spacer Plate - Control Valve Solenoid Side

WARNING: This page is about a different variant/trim than selected.

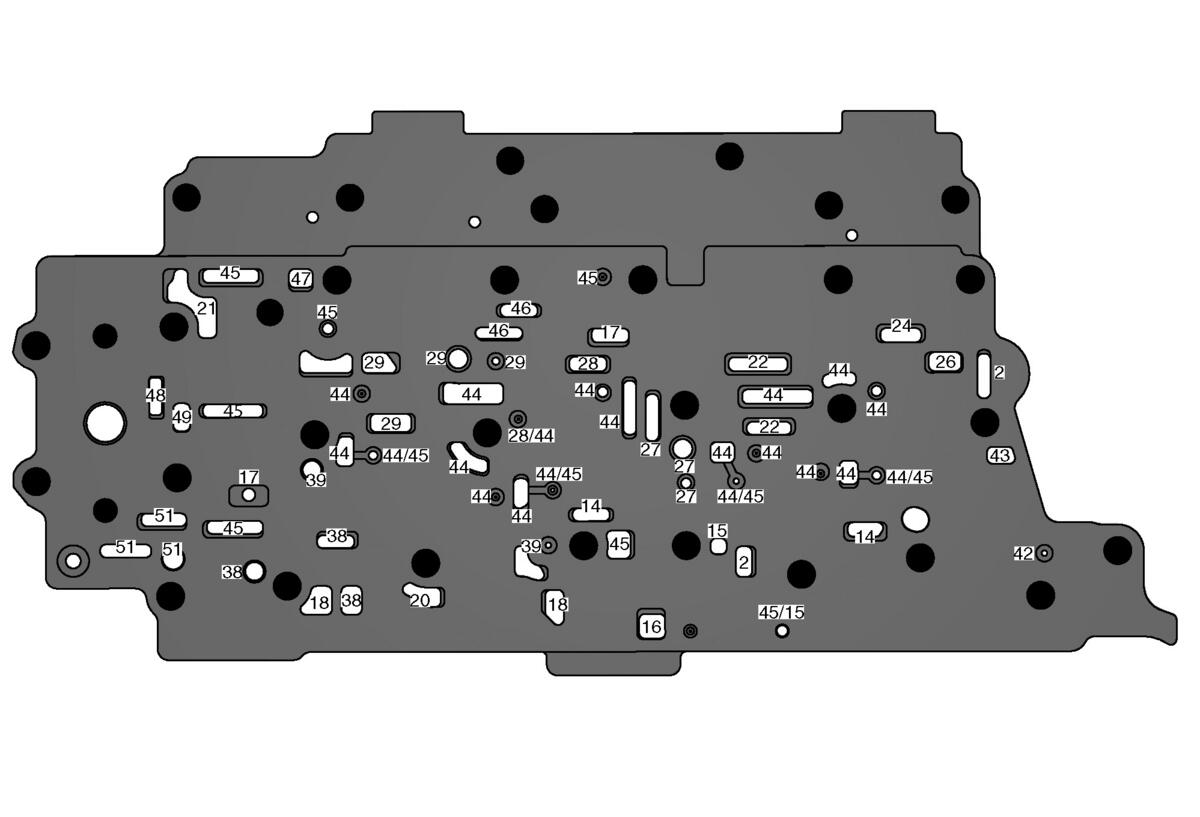

Fig 1: Control Valve Body Spacer Plate Fluid Passages - Control Valve Solenoid Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
2	Line
14	Line VFS
15	TCC VFS
16	Clutch Select Solenoid
17	Drive
20	Actuator Feed Limit
22	1-Reverse/6-7-8-9 Feed
24	5-7-Reverse Clutch Feed
26	5-7-Reverse Clutch Regulator
27	1-2-3-4-5-6 Clutch
28	1-2-3-4-5-6 Clutch Regulator
29	2-9 Clutch
38	S38 Variable Force Solenoid Valve Signal
39	S4 Variable Force Solenoid Valve Signal
43	Fluid Level Solenoid
44	Exhaust Backfill
45	Exhaust
46	Void
47	Range Feed
48	Feed 1
49	Feed 0
51	Park On
