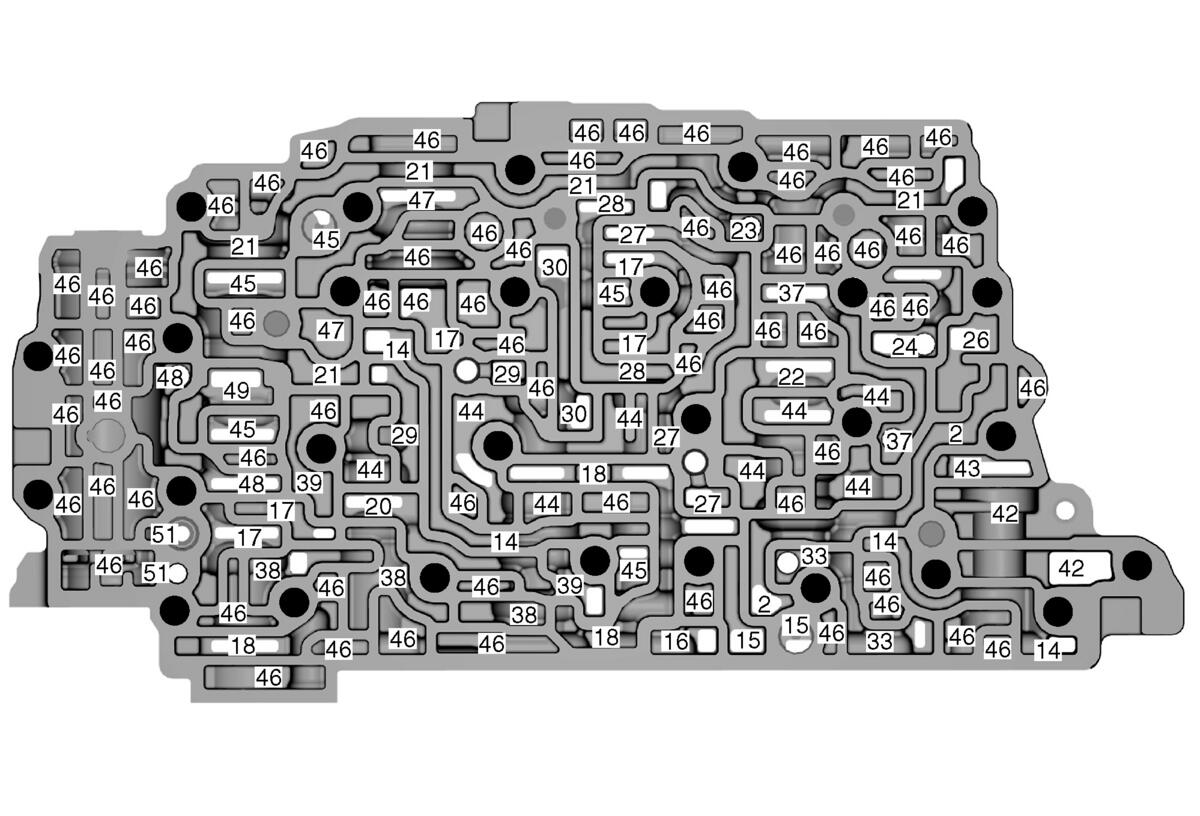

Control Valve Body - Control Valve Solenoid Body Side
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 2 | Line |
| 14 | Line VFS |
| 15 | TCC VFS |
| 16 | Clutch Select Solenoid |
| 17 | Drive |
| 18 | Drive 2 |
| 20 | Actuator Feed Limit |
| 21 | Component Feed |
| 22 | 1-Reverse/6-7-8-9 Feed |
| 23 | 1-Reverse/6-7-8-9 Latch |
| 24 | 5-7-Reverse Clutch Feed |
| 26 | 5-7-Reverse Clutch Regulator |
| 27 | 1-2-3-4-5-6 Clutch |
| 28 | 1-2-3-4-5-6 Clutch Regulator |
| 29 | 2-9 Clutch |
| 30 | 3-8 Clutch |
| 37 | Reverse/5-7-Reverse Feed |
| 38 | S38 Variable Force Solenoid Valve Signal |
| 39 | S4 Variable Force Solenoid Valve Signal |
| 43 | Fluid Level Solenoid |
| 44 | Exhaust Backfill |
| 45 | Exhaust |
| 46 | Void |
| 47 | Range Feed |
| 48 | Feed 1 |
| 49 | Feed 0 |
| 51 | Park On |
