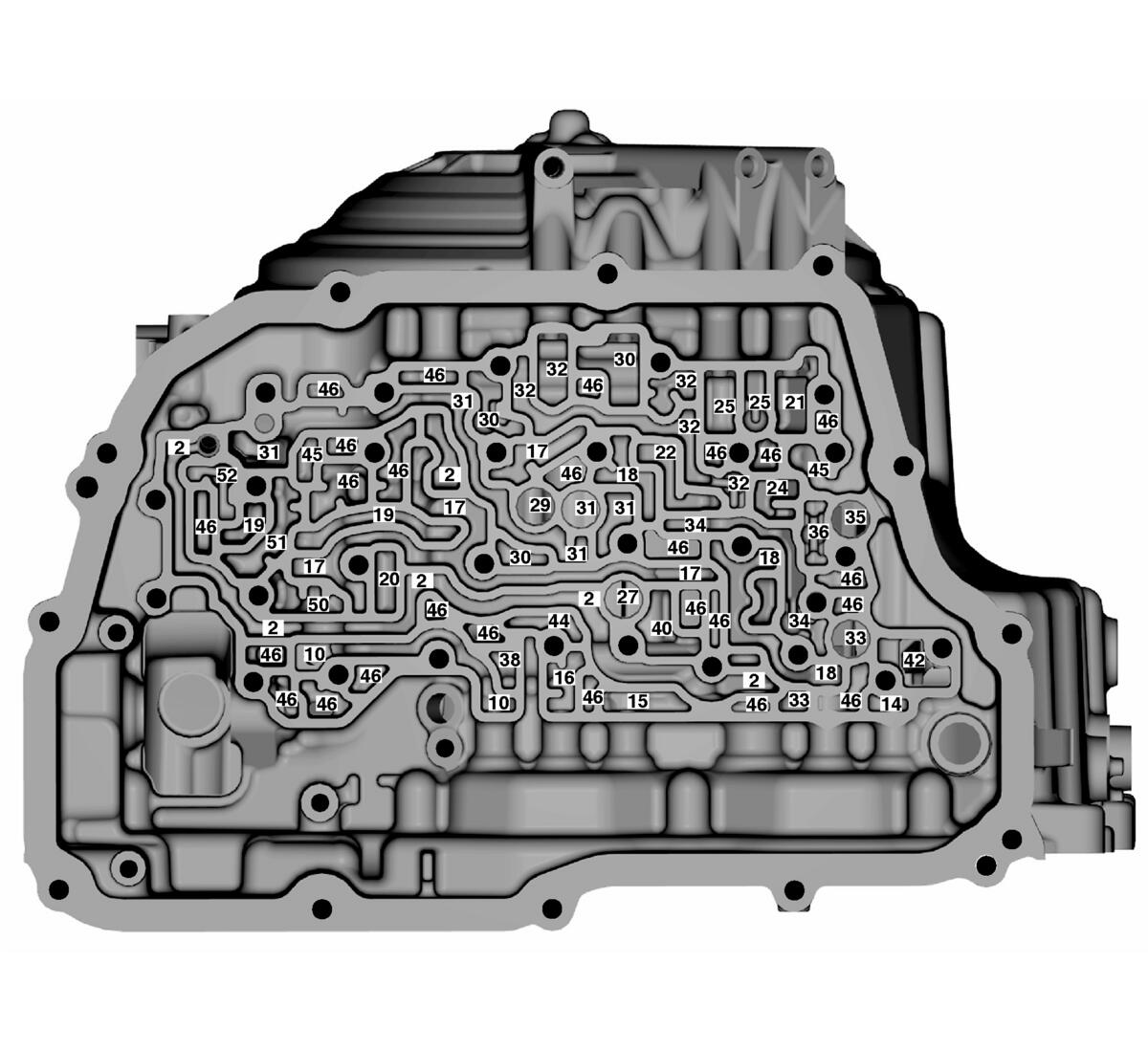

Automatic Transmission Case - Control Valve Body Side
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 2 | Line |
| 10 | Cooler Feed |
| 14 | Line VFS |
| 15 | TCC VFS |
| 16 | Clutch Select Solenoid |
| 17 | Drive |
| 18 | Drive 2 |
| 19 | Reverse |
| 20 | Actuator Feed Limit |
| 21 | Component Feed |
| 22 | 1-Reverse/6-7-8-9 Feed |
| 24 | 5-7-Reverse Clutch Feed |
| 25 | 5-7-Reverse Clutch |
| 27 | 1-2-3-4-5-6 Clutch |
| 29 | 2-9 Clutch |
| 30 | 3-8 Clutch |
| 31 | 4th Clutch |
| 32 | 6-7-8-9 Clutch |
| 33 | 1-Reverse Apply |
| 34 | 1-Reverse Feed |
| 35 | 1-Reverse Release |
| 36 | 1-Reverse Limit |
| 40 | Clutch Select Valve Signal |
| 42 | Fluid Level Control |
| 44 | Exhaust Backfill |
| 45 | Exhaust |
| 46 | Void |
| 50 | Sequence |
| 51 | Park On |
| 52 | Park Off |
