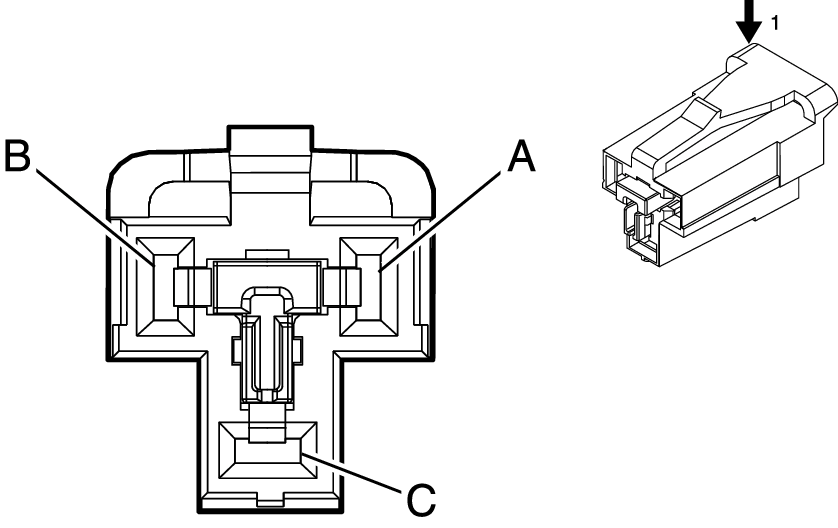

X80C Accessory Power Receptacle - Cargo
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13855150
- Service Connector: 19355447
- Description: 3-Way F 2.8 APEX Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1.5 |
RD/VT |
3340 |
Battery Positive Voltage |
I |
- |
| B |
- |
- |
- |
Not Occupied |
- |
- |
| C |
1.5 |
BK |
1950 |
Ground |
I |
- |
