T22 Mobile Device Wireless Charger Module (K4C-EPH)
|
|

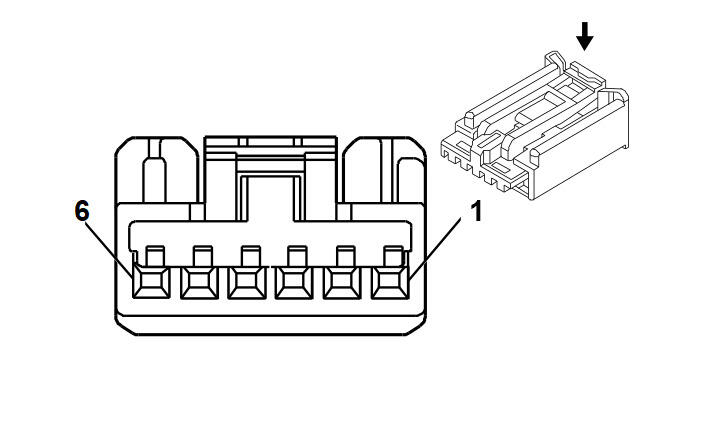

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 19115612
- Service Connector: 19178090
- Description: 6-Way F 0.64 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT |
4601 |
Retained Accessory Power Fused Control |
I |
K4C+USS-EPH |
| 2 |
0.35 |
BK |
1650 |
Ground |
I |
K4C-EPH |
| 3 |
0.35 |
GN |
4512 |
Wireless Charging System Charge Indicator Control |
I |
K4C-EPH |
| 4 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
