Q17A Fuel Injector 1 (LH7)
|
|

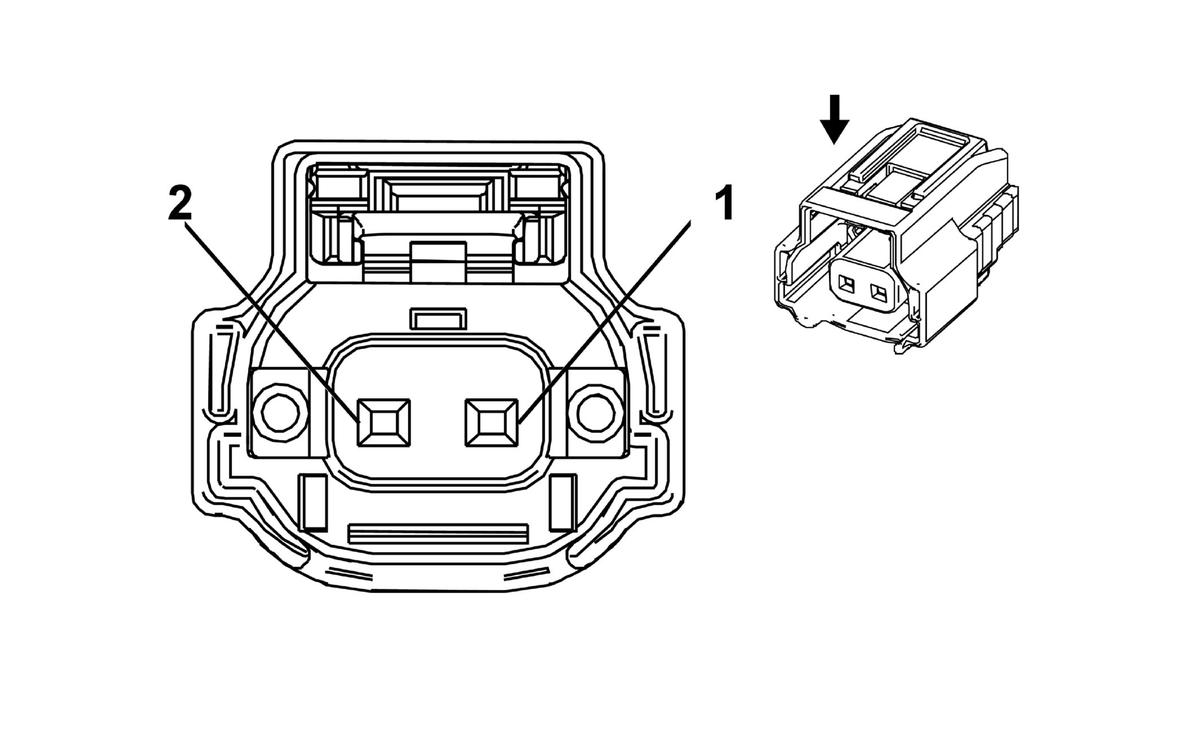

Connector Part Information
- Harness Type: Engine
- OEM Connector: 55573377
- Service Connector: 13407097
- Description: 2-Way F 090 DL Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-18 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BN/WH |
4901 |
Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1 |
I |
LH7 |
| 2 |
1.5 |
BN |
4801 |
Direct Fuel Injector (DFI) High Voltage Control Cylinder 1 |
I |
LH7 |
