E11 Fuel Heater (LH7)
|
|

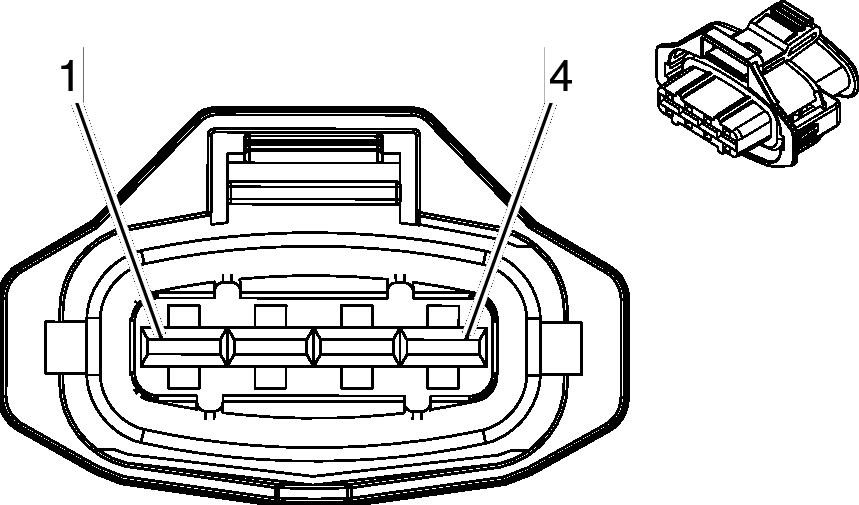

Connector Part Information
- Harness Type: Particulate Filter
- OEM Connector: 13203442
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 2.8 Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK/VT |
455 |
Fuel Filter Temperature Signal |
I |
- |
| 2 |
2.5 |
VT/GN |
355 |
Fuel Filter Heater Voltage |
I |
- |
| 3 |
0.35 |
BK/VT |
412 |
Fuel Filter Temperature Sensor Low Reference |
I |
- |
| 4 |
2.5 |
BK |
1950 |
Ground |
I |
- |
