B130A Exhaust Gas Recirculation Temperature Sensor 1 (LH7)
|
|

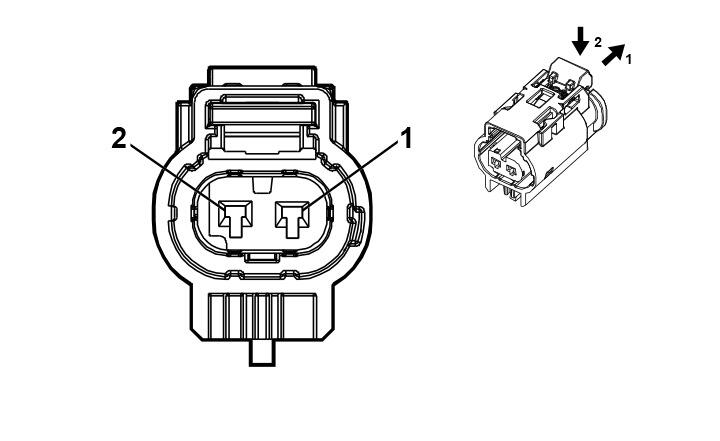

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13583197
- Service Connector: 19332627
- Description: 2-Way F 1.2 Multilock Series, Sealed
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/GN |
3236 |
Exhaust Gas Recirculation Temperature Sensor 2 Signal |
I |
LH7 |
| 2 |
0.5 |
BK/YE |
6275 |
Exhaust Gas Recirculation Temperature Sensor 2 Low Reference |
I |
LH7 |
