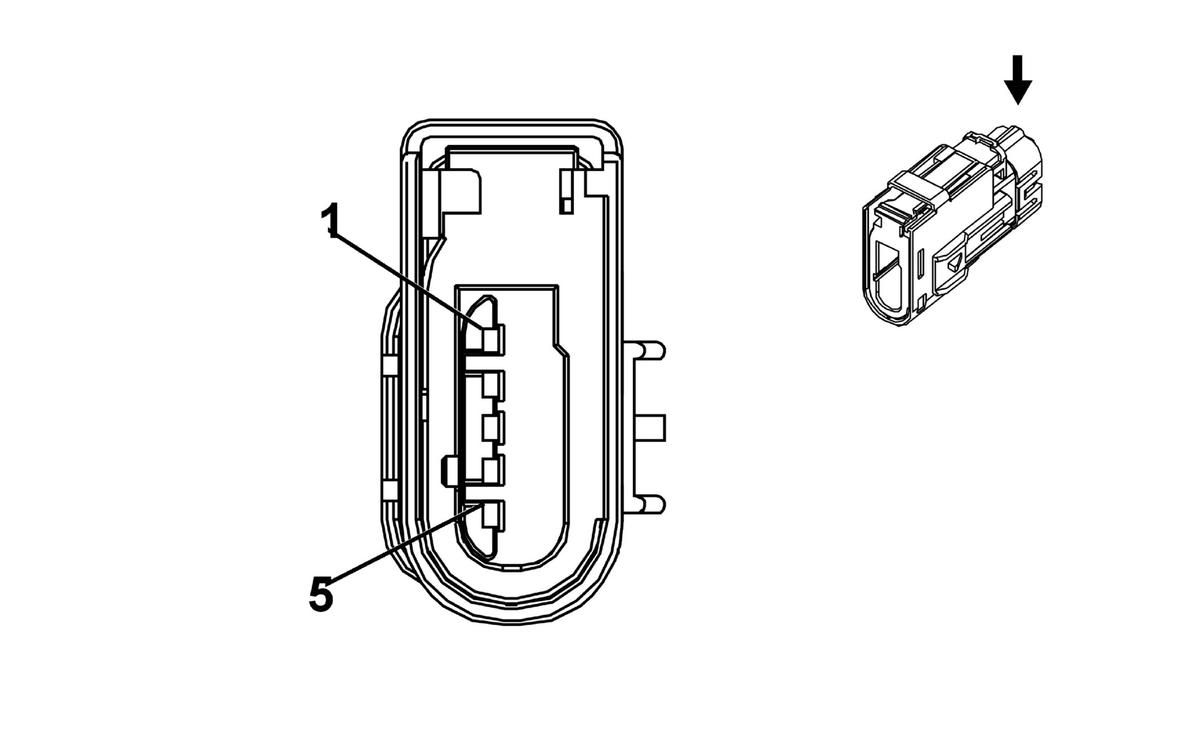

A24D Door Handle Assembly - Driver Exterior
|
|
Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13582039
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way M 1.2 Series, Sealed (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/WH |
3570 |
Driver Door Handle Switch Signal |
I |
- |
| 2 |
0.35 |
VT |
3560 |
Passive Entry Driver Door Antenna Signal Hi |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
VT/GY |
3561 |
Passive Entry Driver Door Antenna Signal Lo |
I |
- |
| 5 |
0.35 |
BK |
1550 |
Ground |
I |
- |
