Fuel Tank Harness Routing (LH7)

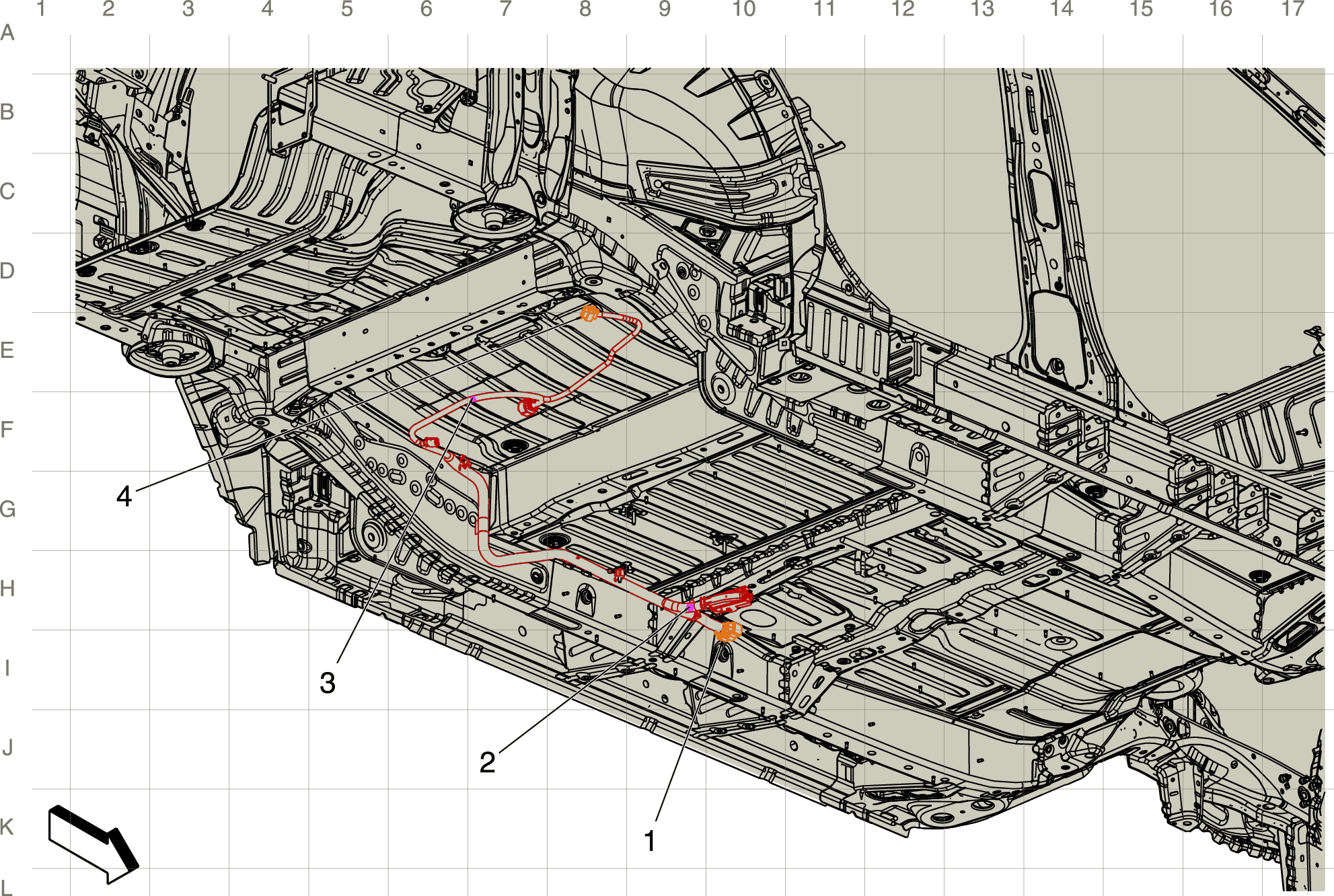

Fig 1: Fuel Tank Harness Routing (LH7)
GM4595353Courtesy of GENERAL MOTORS COMPANY
Items
1. X350 Fuel Tank Harness to Body Harness X350 Fuel Tank Harness to Body Harness
2. J414 Left Tail Lamp Harness
3. J415 Right Tail Lamp Harness
4. X351 Fuel Tank Harness to Reductant Fluid Reservoir Assembly Harness (LH7) X351 Fuel Tank Harness to Particulate Filter Harness (LH7)
