Front Fascia Harness Routing (Chevrolet)

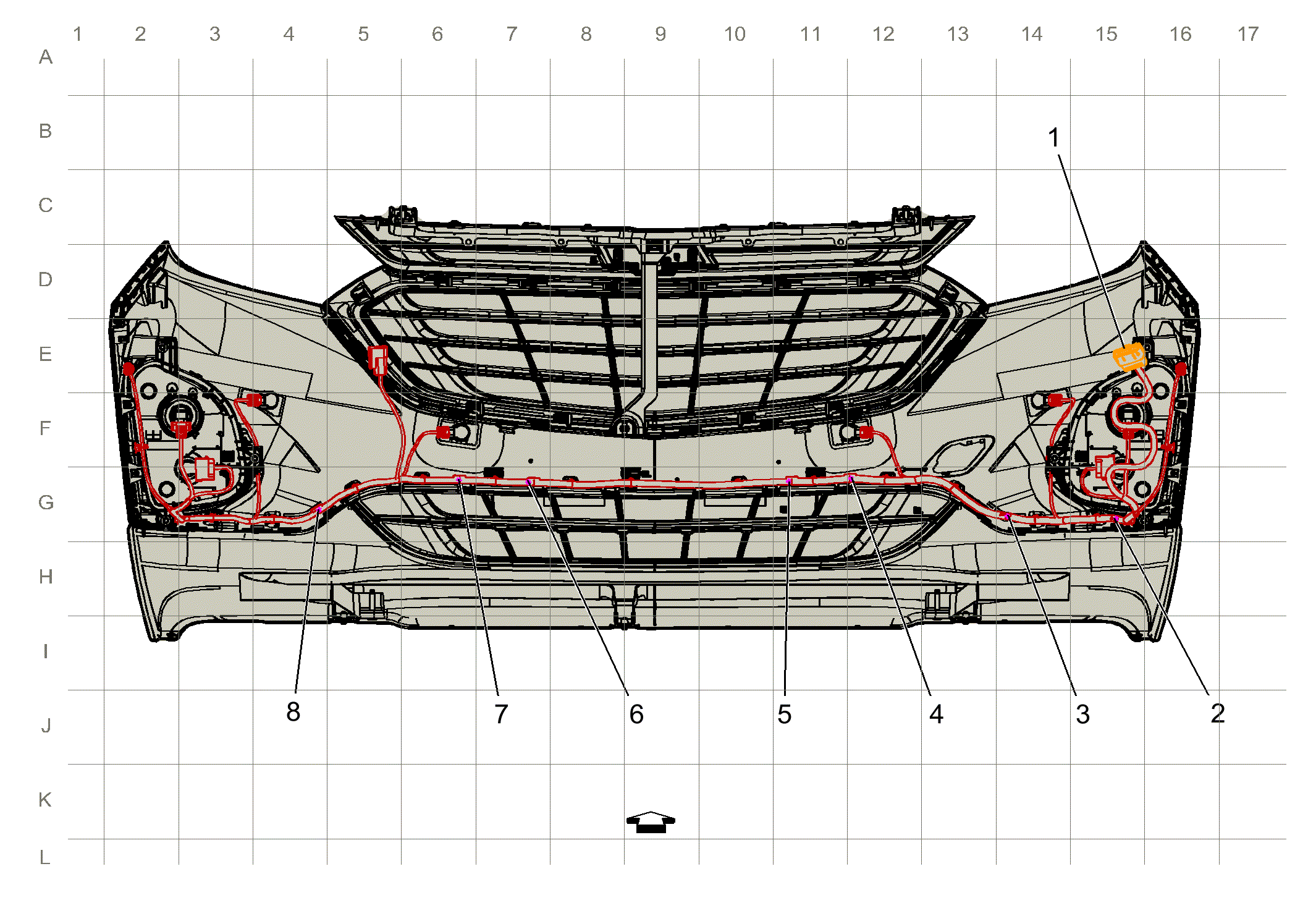

Fig 1: Front Fascia Harness Routing (Chevrolet)
GM4648650Courtesy of GENERAL MOTORS COMPANY
Items
1. X100 Front Fascia Harness to Body Harness X100 Front Fascia Harness to Body Harness
2. J100 Front Fascia Harness (T3U)
3. J106 Front Fascia Harness
4. J102 Front Fascia Harness
5. J101 Front Fascia Harness (T3U)
6. J103 Front Fascia Harness
7. J105 Front Fascia Harness
8. J104 Front Fascia Harness
