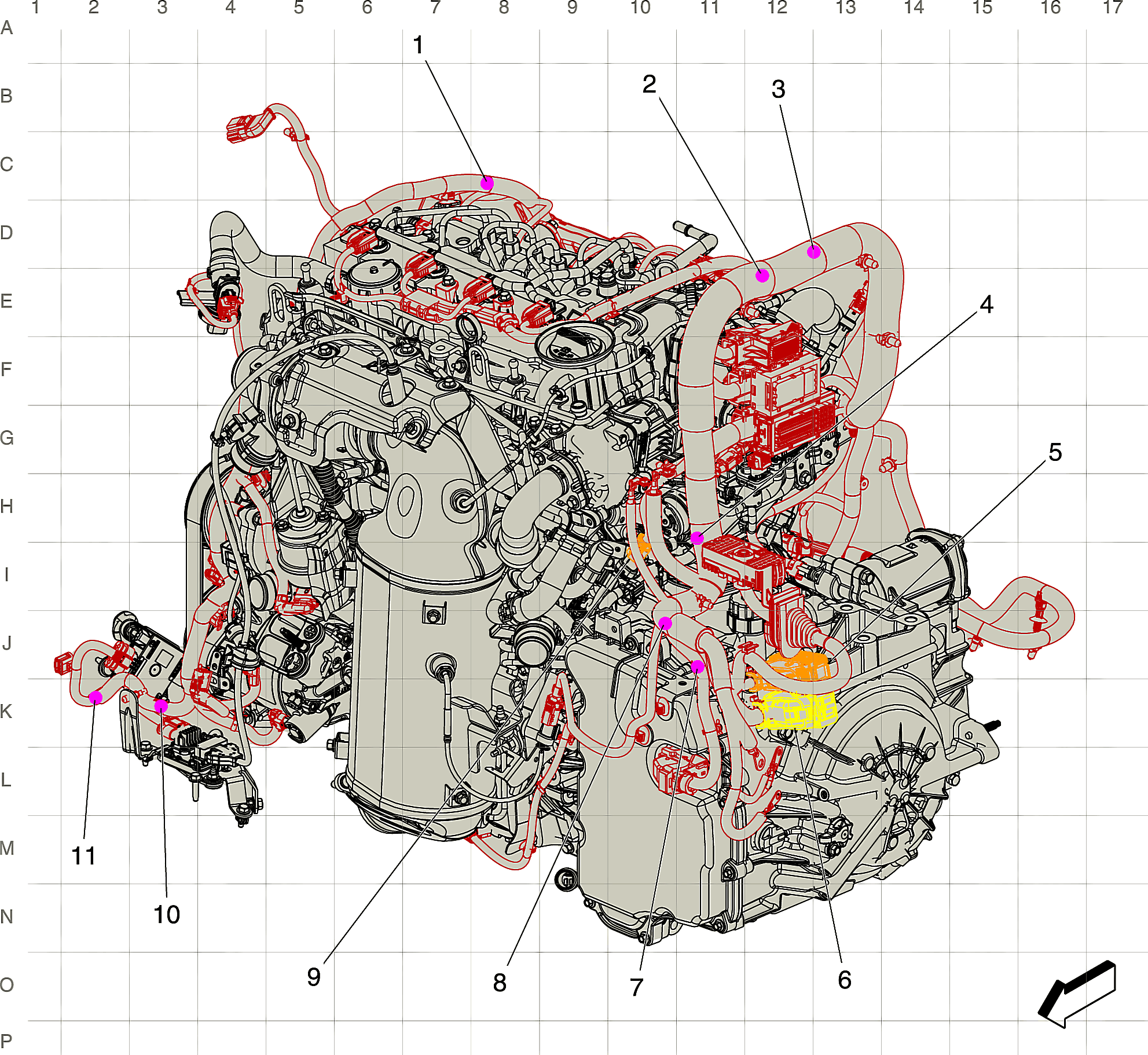

Engine Harness Routing - Left Front of the Engine (LH7)
| Items |
|---|
| 1. J114 Engine Harness |
| 2. J112 Engine Harness |
| 3. J110 Engine Harness |
| 4. J125 Engine Harness (LH7) |
| 5. X107 Engine Harness to Body Harness X107 Engine Harness to Body Harness |
| 6. X106 Engine Harness to Body Harness X106 Engine Harness to Body Harness |
| 7. J115 Engine Harness |
| 8. J111 Engine Harness |
| 9. X108 Engine Harness to Crankshaft Position Sensor Jumper Harness (LH7) X108 Engine Harness to Crankshaft Position Sensor Jumper Harness (LH7) |
| 10. J113 Engine Harness |
| 11. J124 Engine Harness (LH7) |
