7-Pin Trailer Connector - Pins B, and D-G (V92)

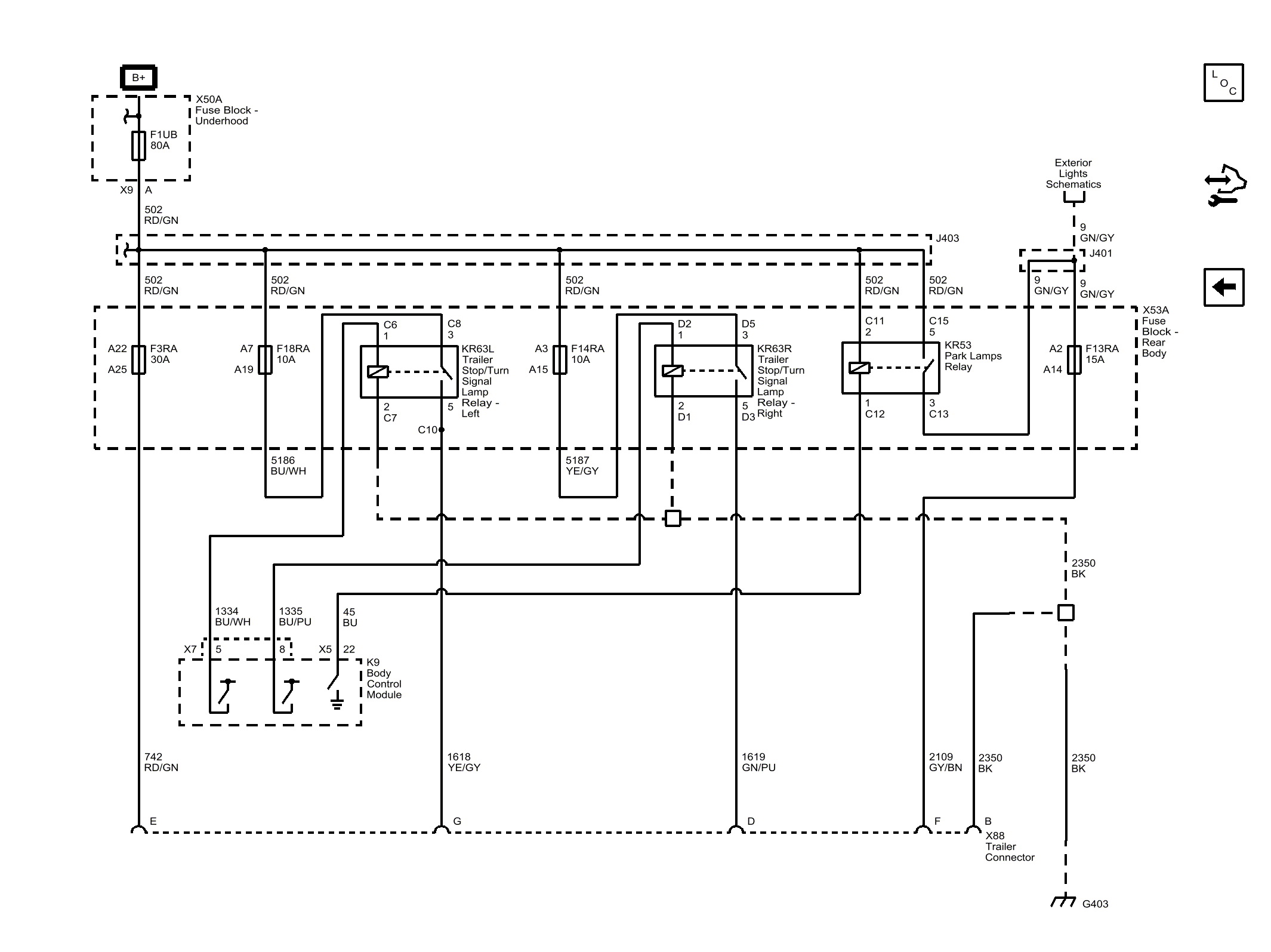

Fig 1: 7-Pin Trailer Connector - Pins B, and D-G (V92)

GM4598150

Courtesy of GENERAL MOTORS COMPANY
