7-Pin Trailer Connector - Pins A and C, and Trailer Brake Provisions (V92)

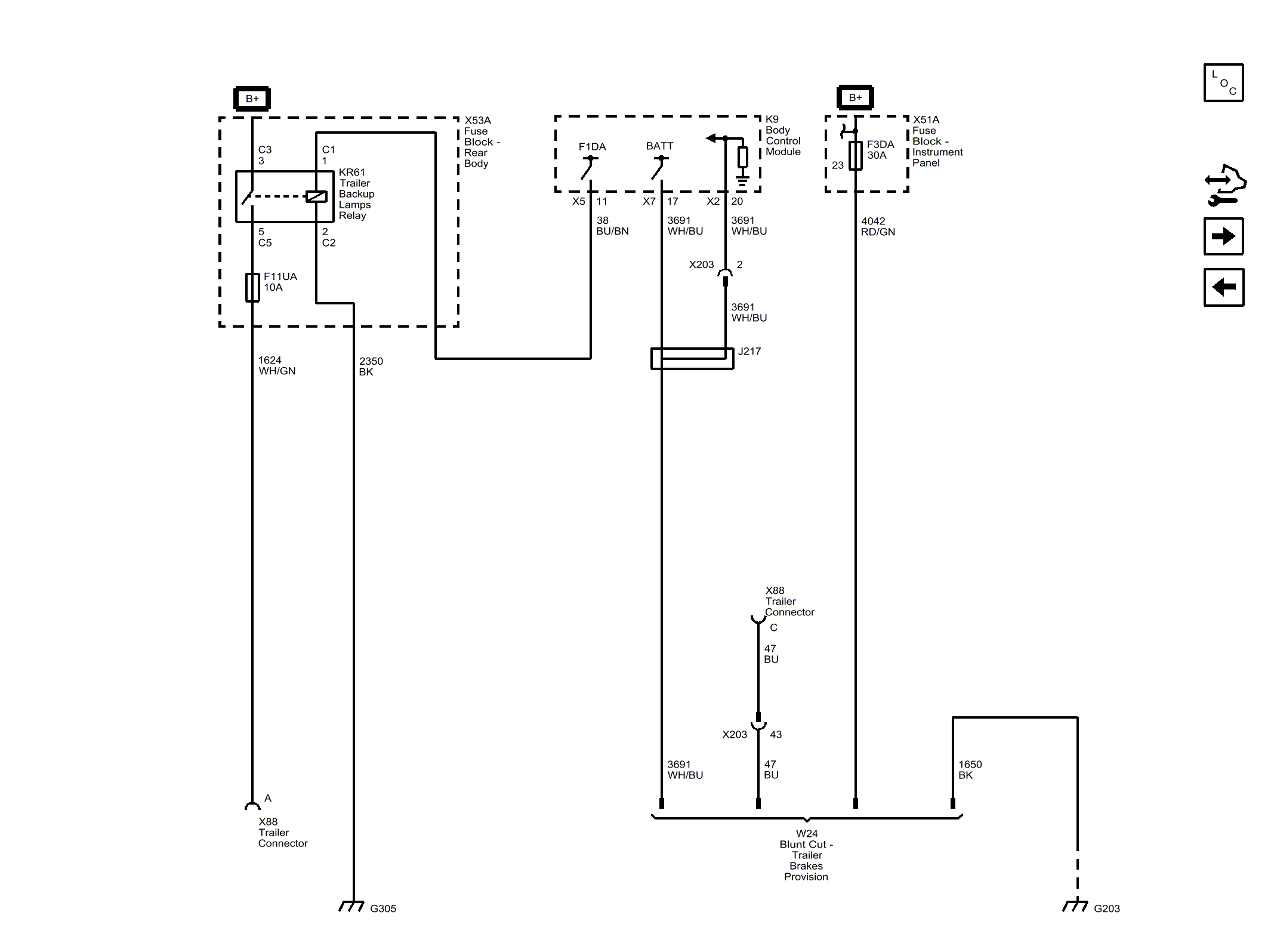

Fig 1: 7-Pin Trailer Connector - Pins A and C, and Trailer Brake Provisions (V92)

GM4598146

Courtesy of GENERAL MOTORS COMPANY
