F6UA, F8UA, F10UA, F11UA, F12UA, F18UA, F19UA, F20UA, F21UA, F22UA, F27UA, F28UA, and F38UA Fuses

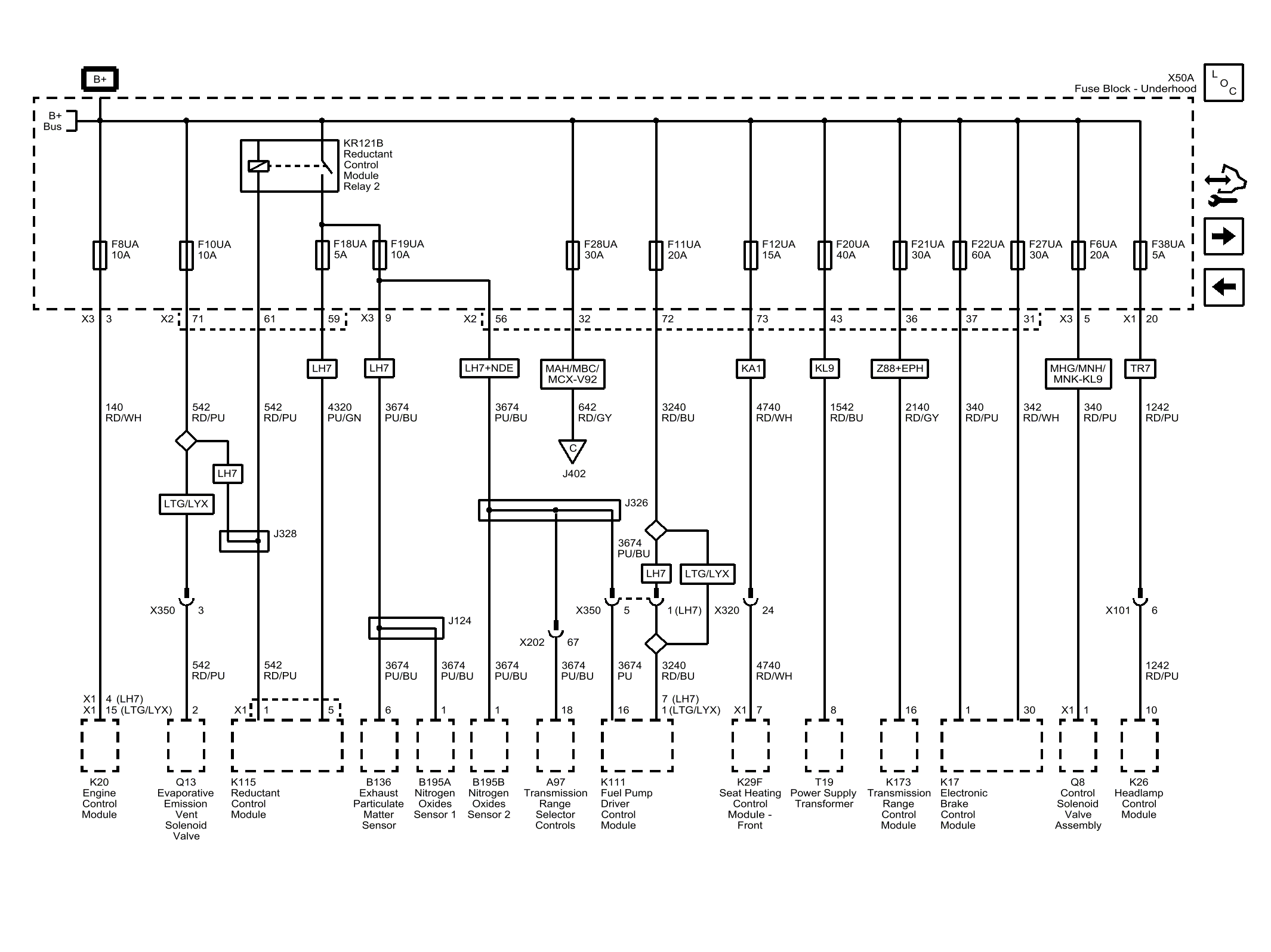

Fig 1: F6UA, F8UA, F10UA, F11UA, F12UA, F18UA, F19UA, F20UA, F21UA, F22UA, F27UA, F28UA, and F38UA Fuses
GM4597986Courtesy of GENERAL MOTORS COMPANY
