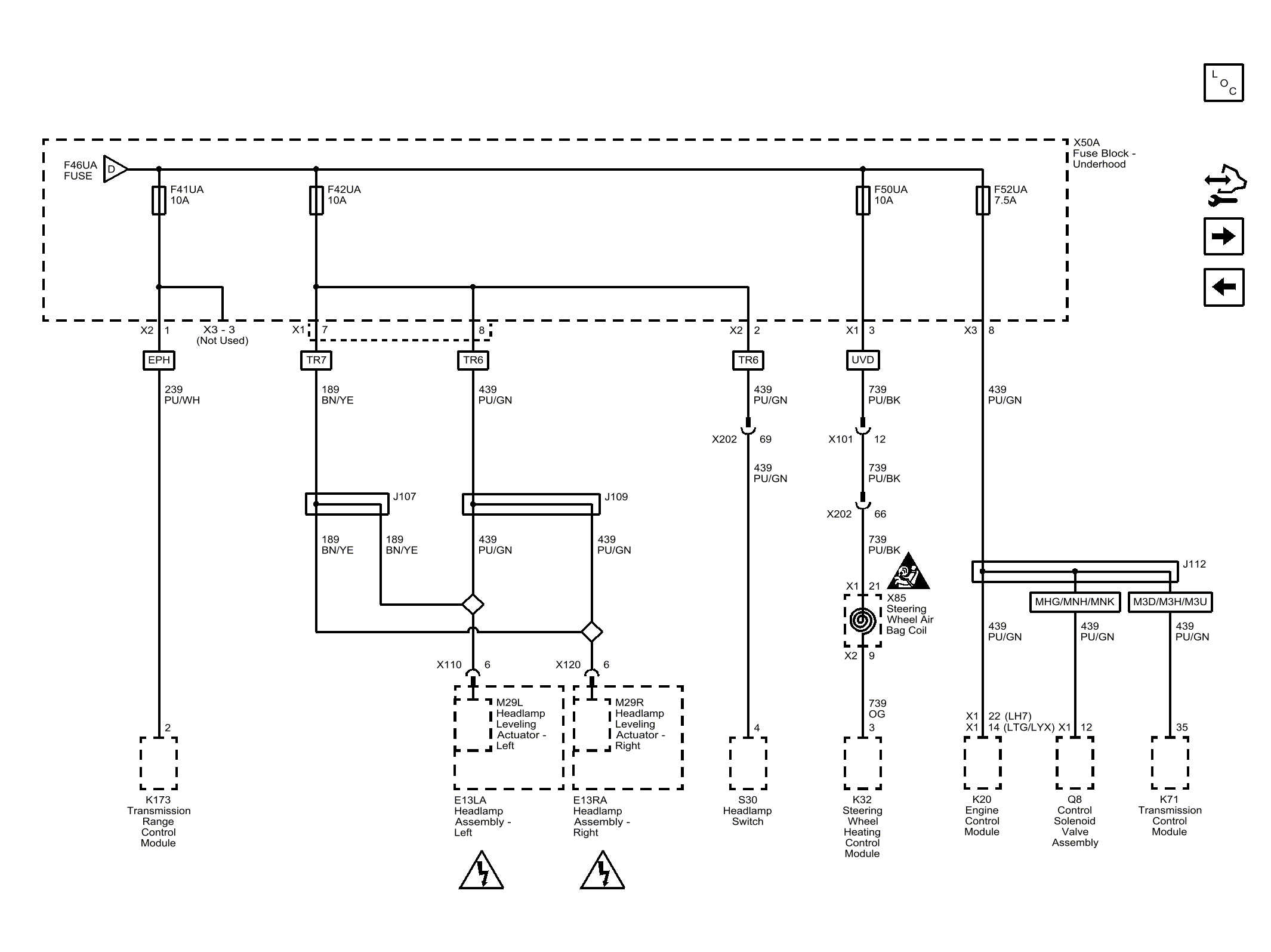

Home >> Chevrolet >> 2018 >> Equinox L >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Schematic Wiring Diagrams >> Power Distribution Wiring Schematics >> F41UA, F42UA, F50UA, and F52UA Fuses
