F35DA, F36DA, and F37DA Fuses and CB2 Circuit Breaker

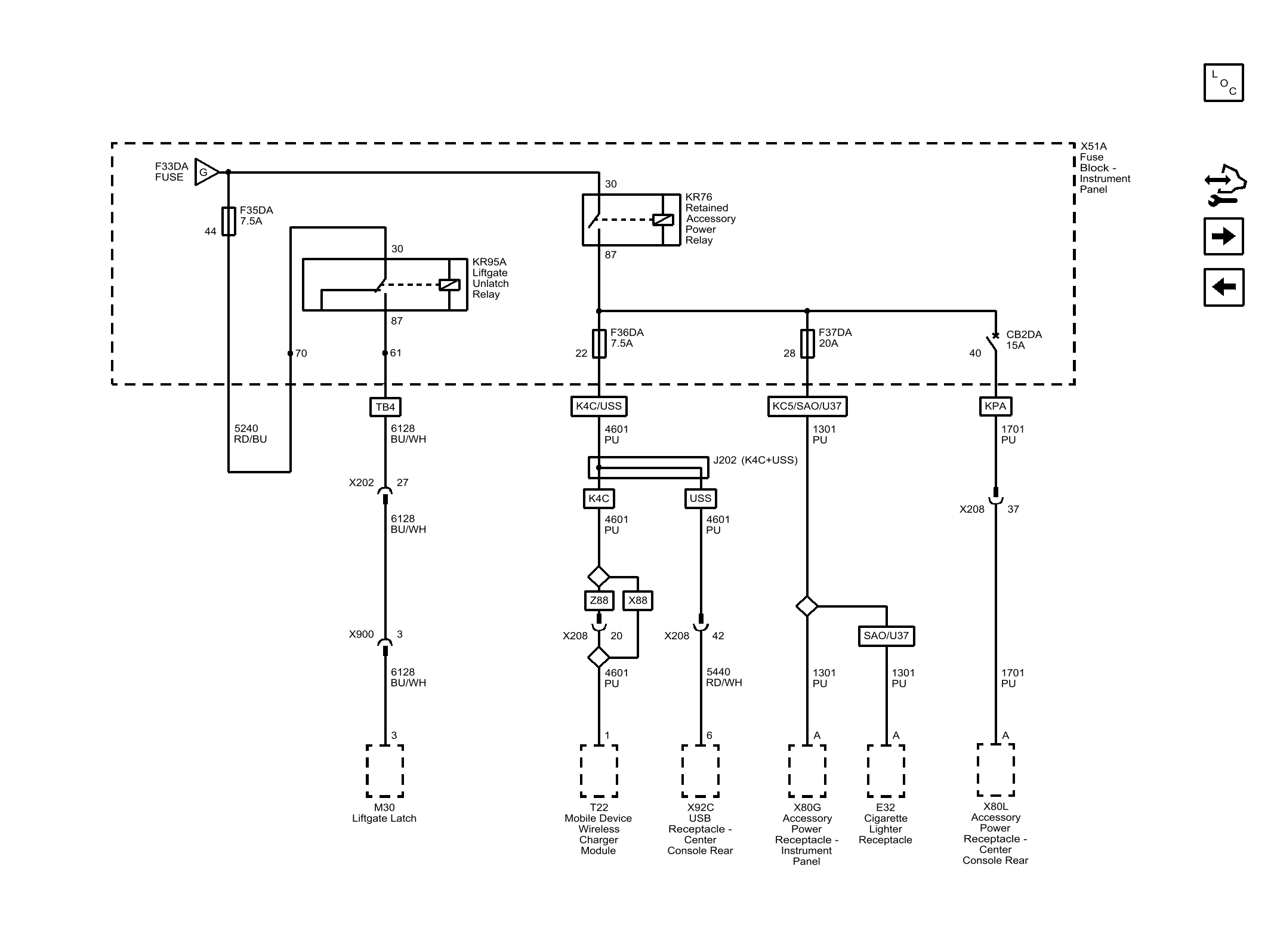

Fig 1: F35DA, F36DA, and F37DA Fuses and CB2 Circuit Breaker

GM4598016

Courtesy of GENERAL MOTORS COMPANY
