F32UA, F44UA, F45UA, F46UA, and F47UA Fuses

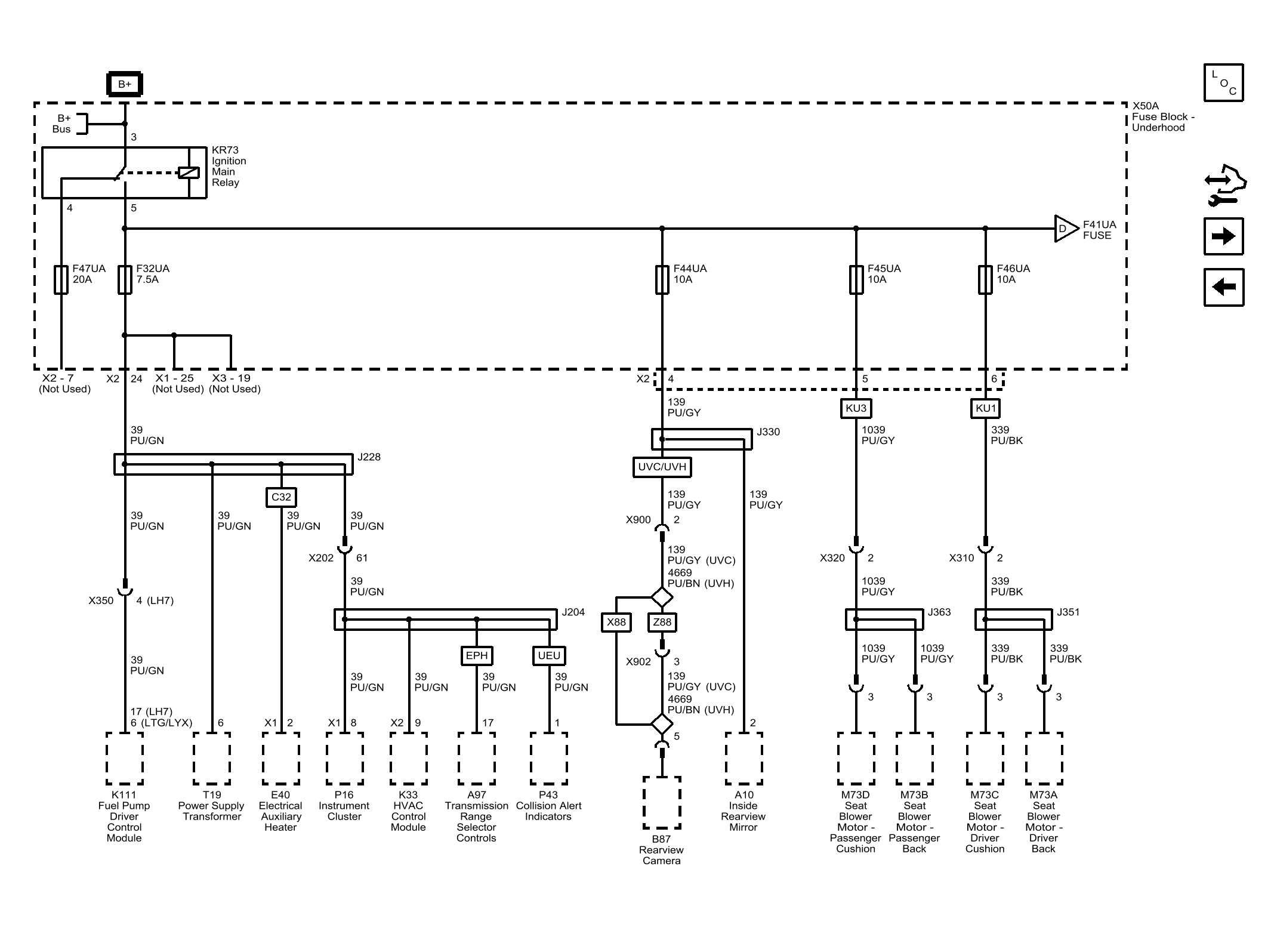

Fig 1: F32UA, F44UA, F45UA, F46UA, and F47UA Fuses

GM4597996

Courtesy of GENERAL MOTORS COMPANY
