F2UB, F5RA, F6RA, F7RA, F8RA, F9RA, F10RA, F11RA, F14RA, F19RA, F20RA, F21RA, F22RA Fuses and F4RA Circuit Breaker

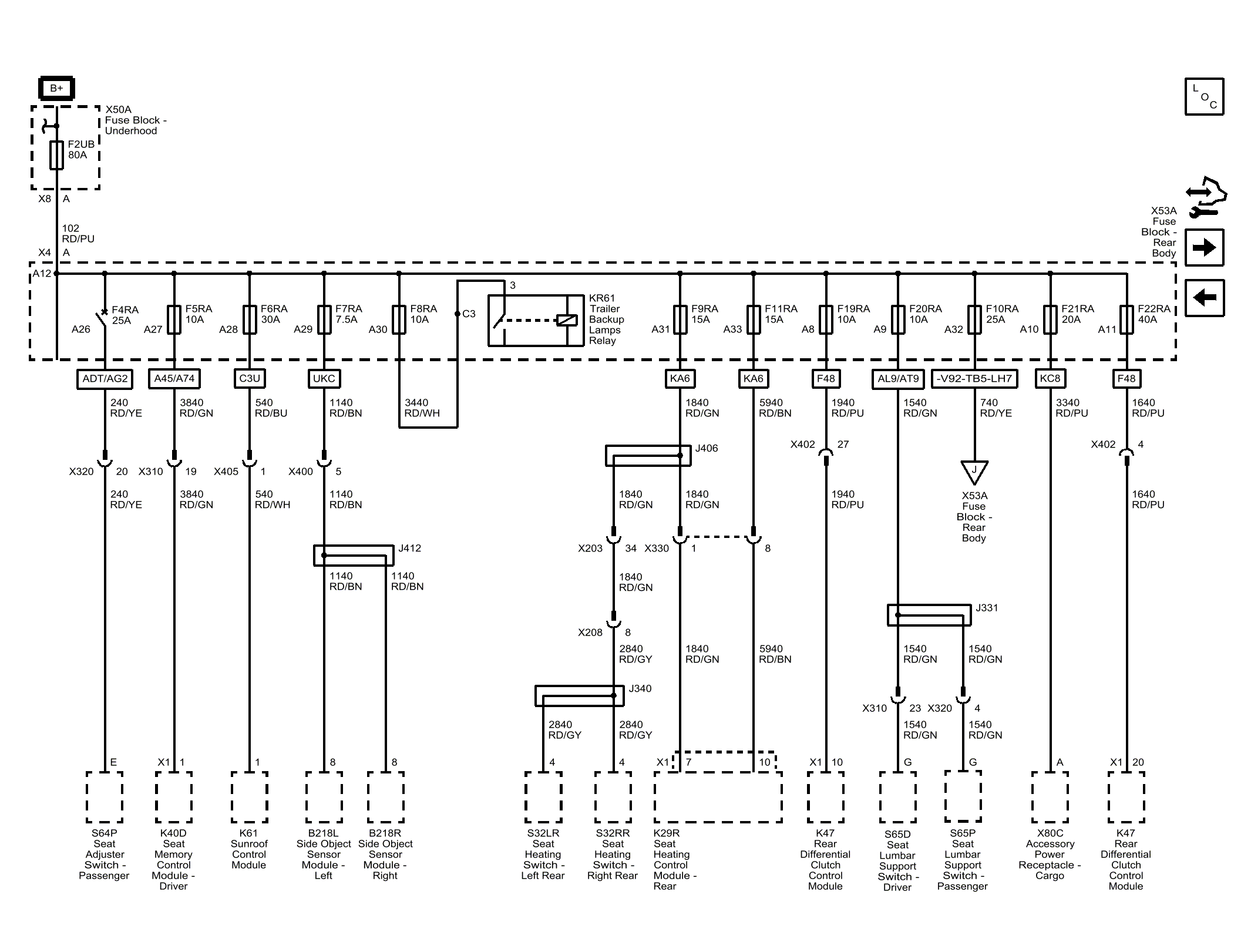

Fig 1: F2UB, F5RA, F6RA, F7RA, F8RA, F9RA, F10RA, F11RA, F14RA, F19RA, F20RA, F21RA, F22RA Fuses and F4RA Circuit Breaker
GM4598032Courtesy of GENERAL MOTORS COMPANY
