F2BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F16DA, F17DA, F18DA, and F19DA Fuses

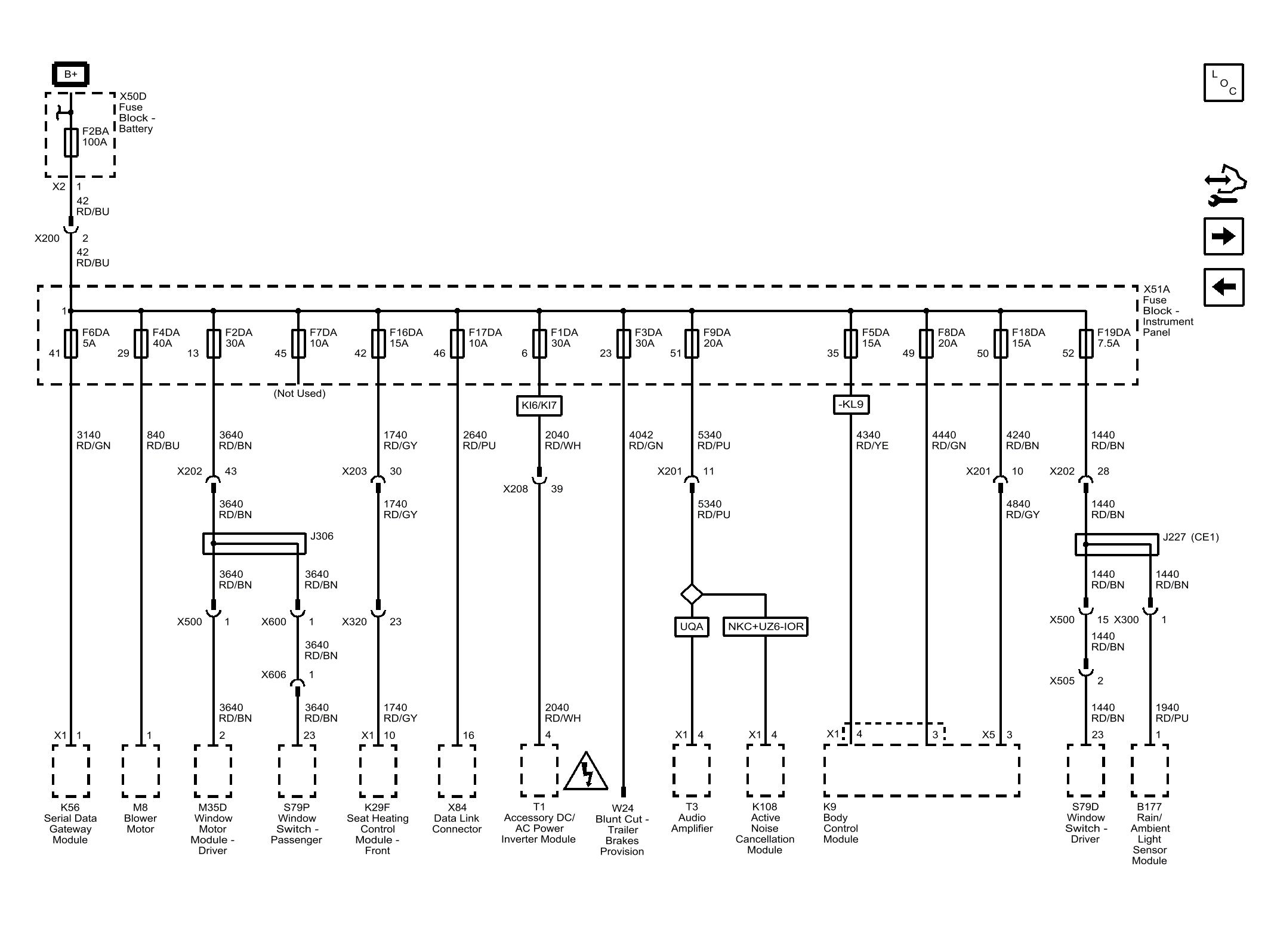

Fig 1: F2BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F16DA, F17DA, F18DA, and F19DA Fuses
GM4598005Courtesy of GENERAL MOTORS COMPANY
