F29UA, F30UA, F36UA, F37UA, F39UA, F51UA, and F57UA Fuses

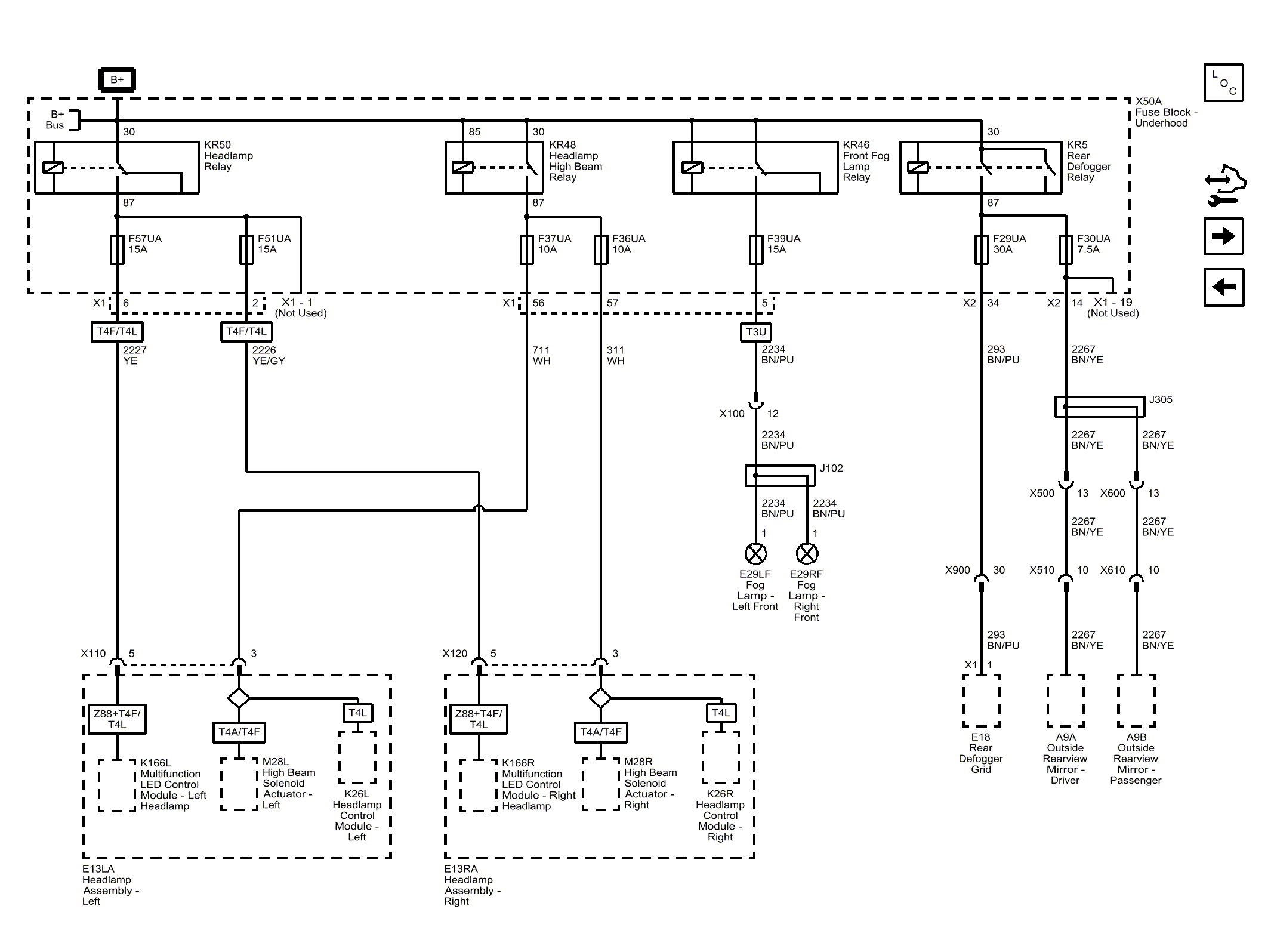

Fig 1: F29UA, F30UA, F36UA, F37UA, F39UA, F51UA, and F57UA Fuses

GM4597992

Courtesy of GENERAL MOTORS COMPANY
