F26DA, F27DA, F28DA, F30DA F31DA, and F33DA Fuses

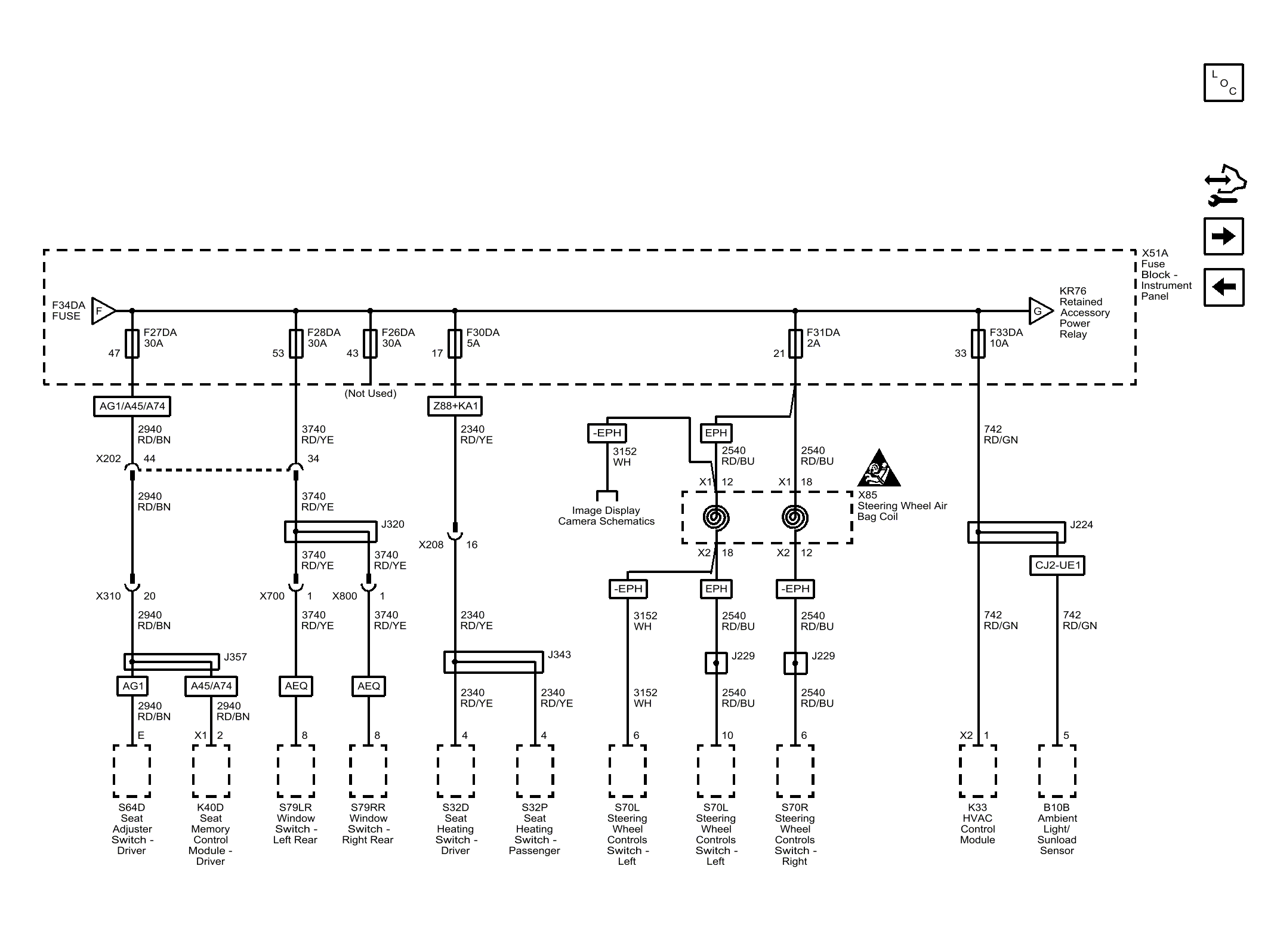

Fig 1: F26DA, F27DA, F28DA, F30DA F31DA, and F33DA Fuses

GM4598012

Courtesy of GENERAL MOTORS COMPANY
