F1UB, F1RA, F2RA, F3RA, F14RA, and F18RA Fuses

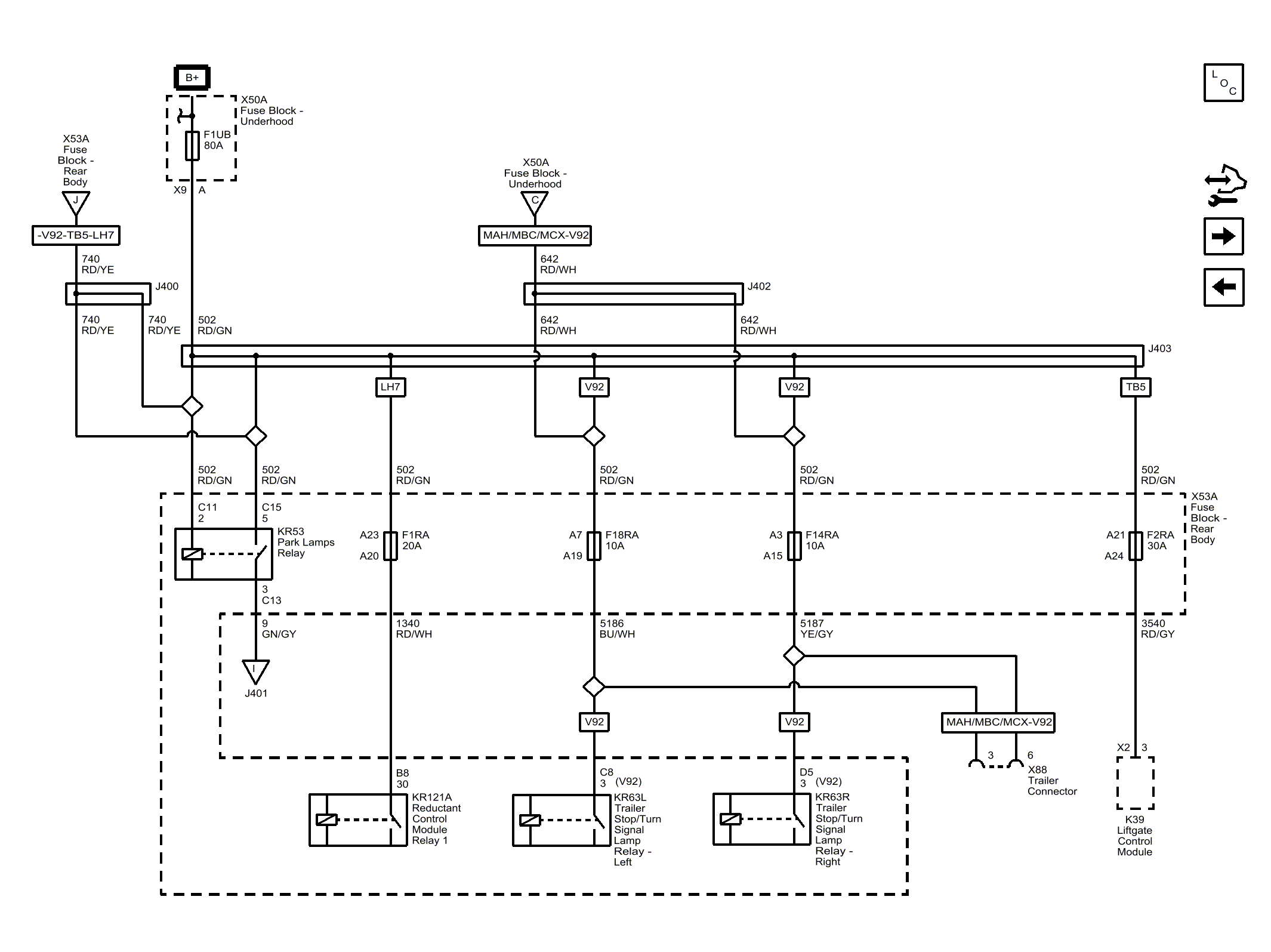

Fig 1: F1UB, F1RA, F2RA, F3RA, F14RA, and F18RA Fuses

GM4598026

Courtesy of GENERAL MOTORS COMPANY
