F1BA, F14DA, F15DA, F20DA, F21DA, F22DA, F23DA, F24DA, F25DA, F32DA, and F34DA Fuses

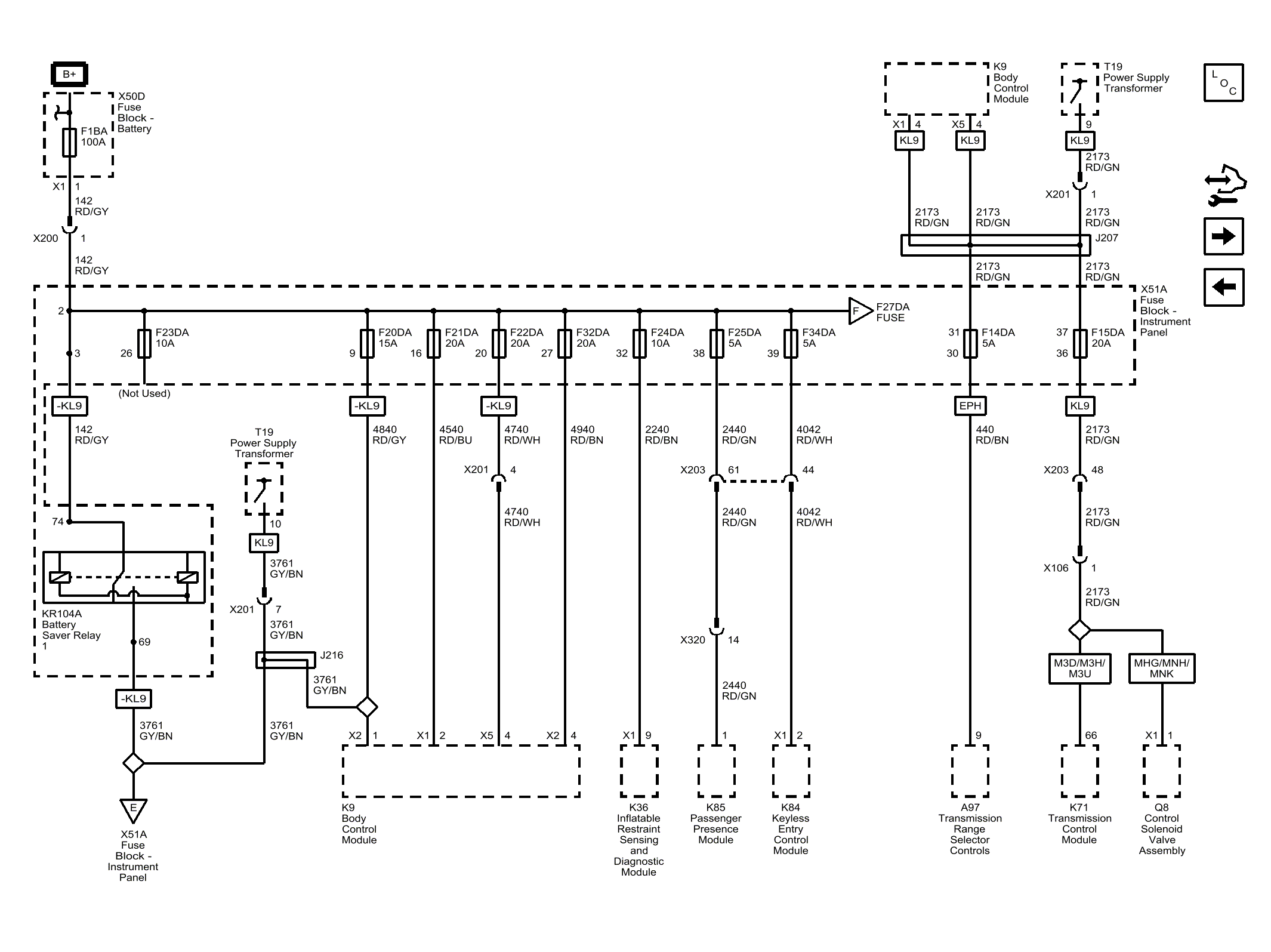

Fig 1: F1BA, F14DA, F15DA, F20DA, F21DA, F22DA, F23DA, F24DA, F25DA, F32DA, and F34DA Fuses
GM4598010Courtesy of GENERAL MOTORS COMPANY
