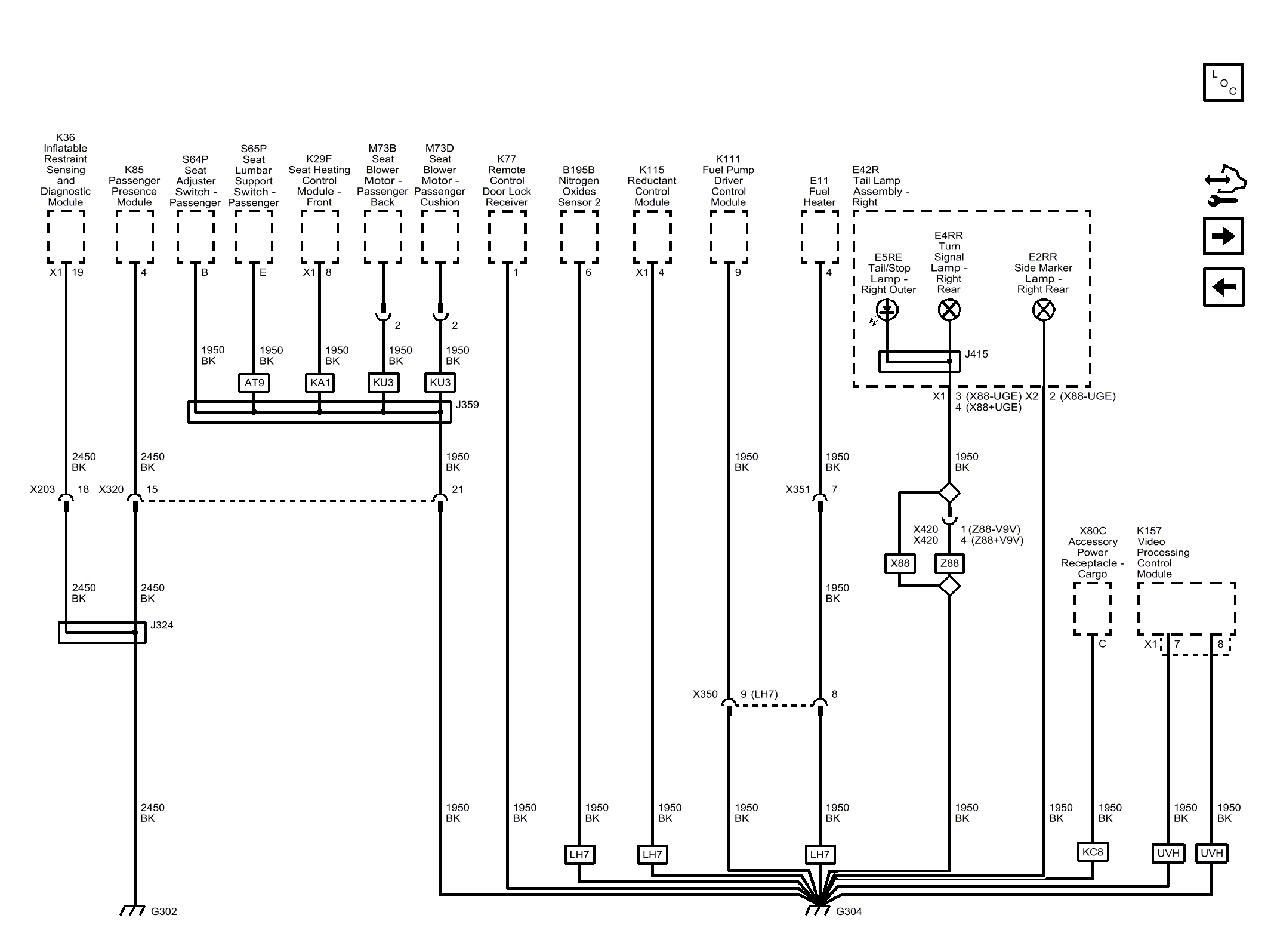

Home >> Chevrolet >> 2018 >> Equinox L >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics >> G302, and G304
