Ground Distribution Wiring Schematics: G203

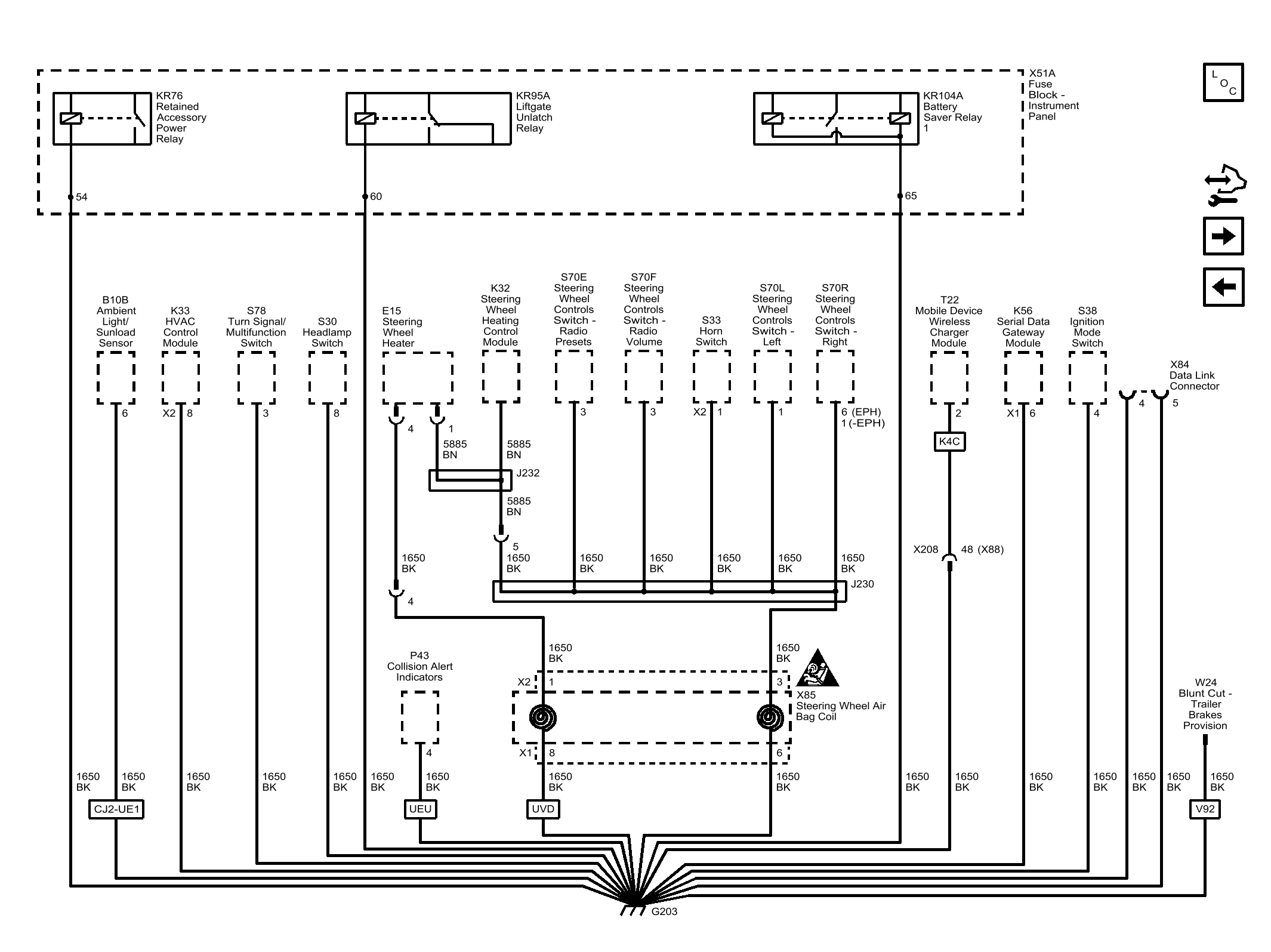

Fig 1: G203

GM4598128

Courtesy of GENERAL MOTORS COMPANY
