Ground Distribution Wiring Schematics: G201

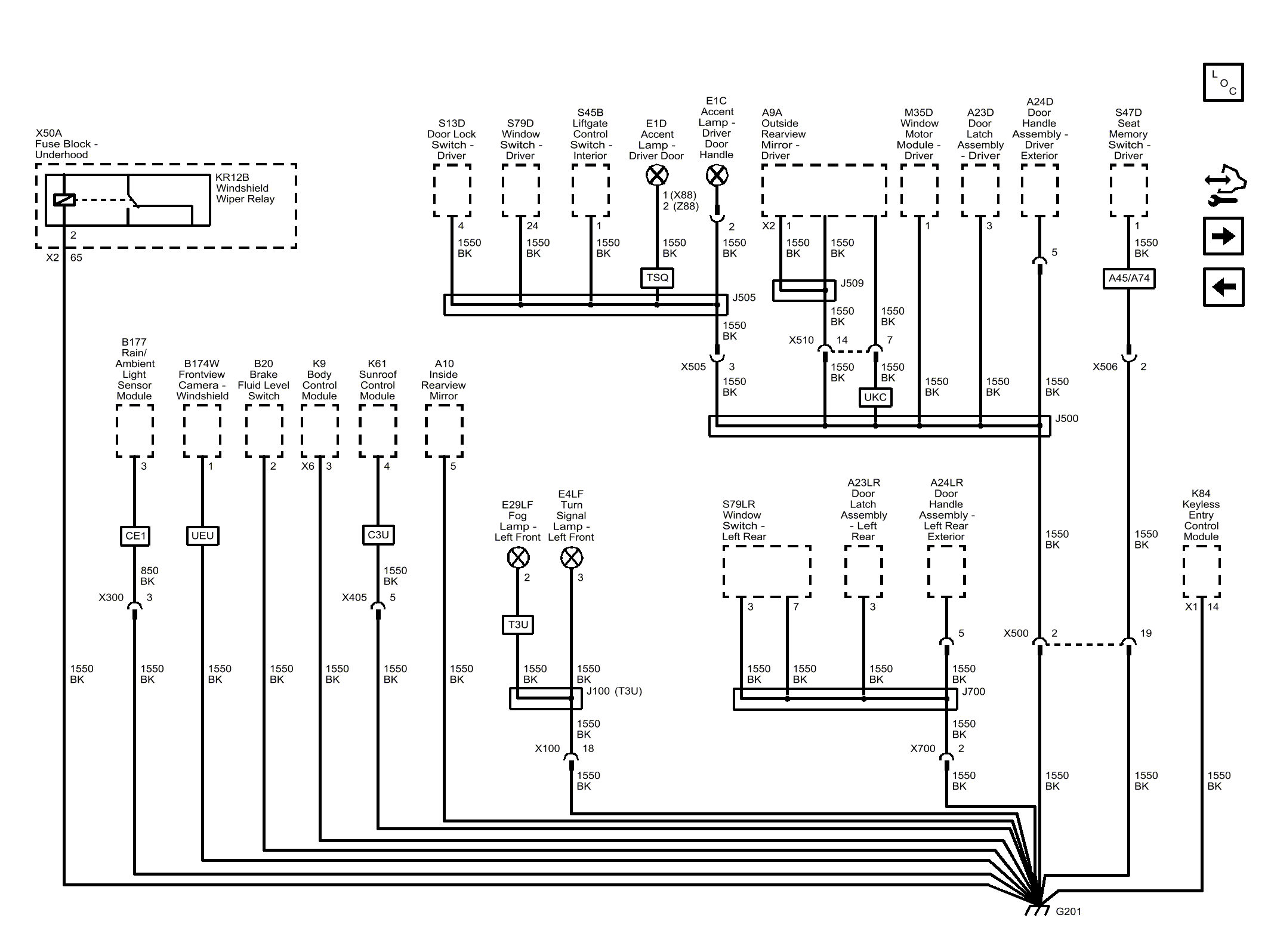

Fig 1: G201

GM4598120

Courtesy of GENERAL MOTORS COMPANY
