Ground Distribution Wiring Schematics: G200

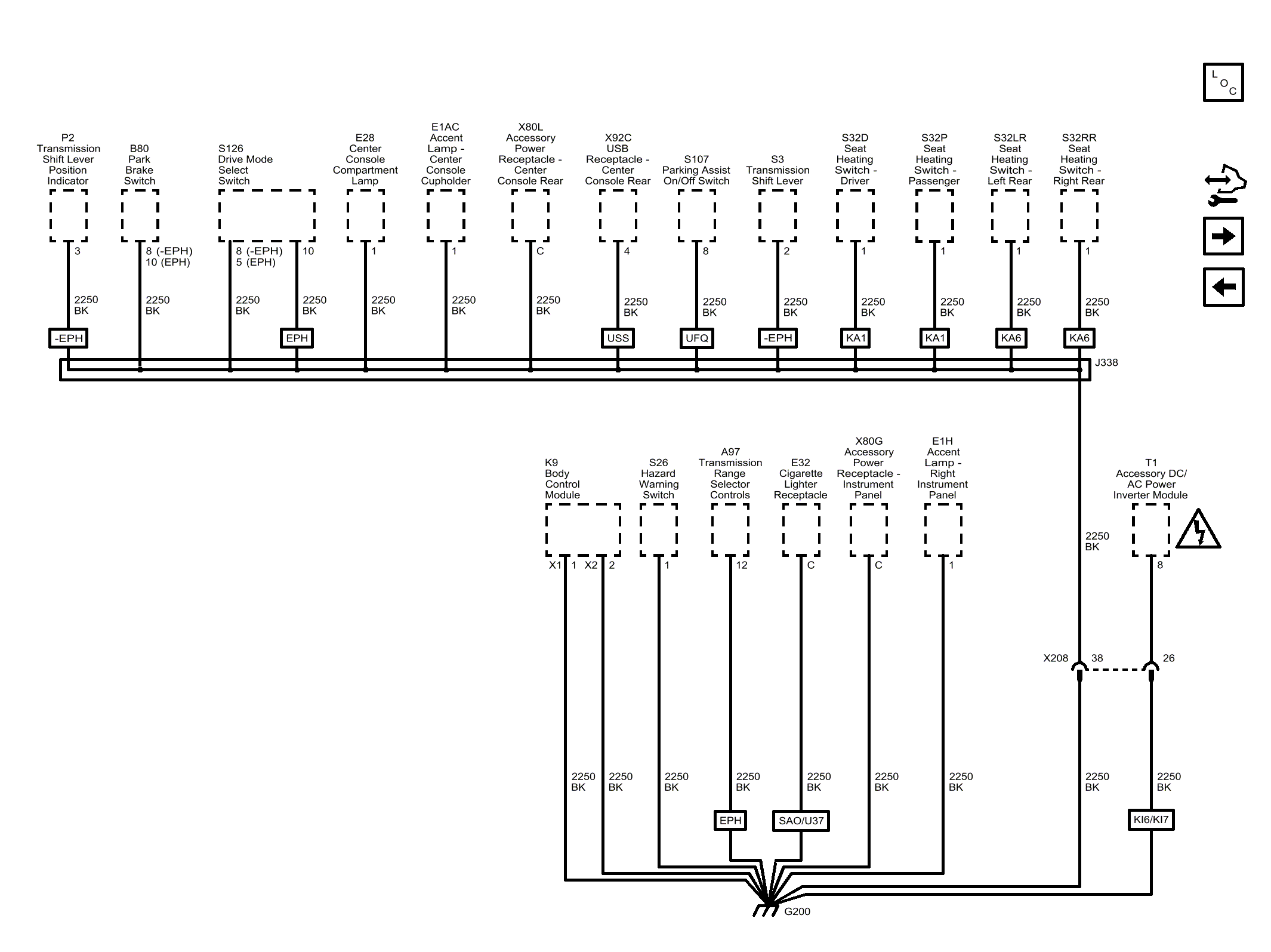

Fig 1: G200

GM4598117

Courtesy of GENERAL MOTORS COMPANY
