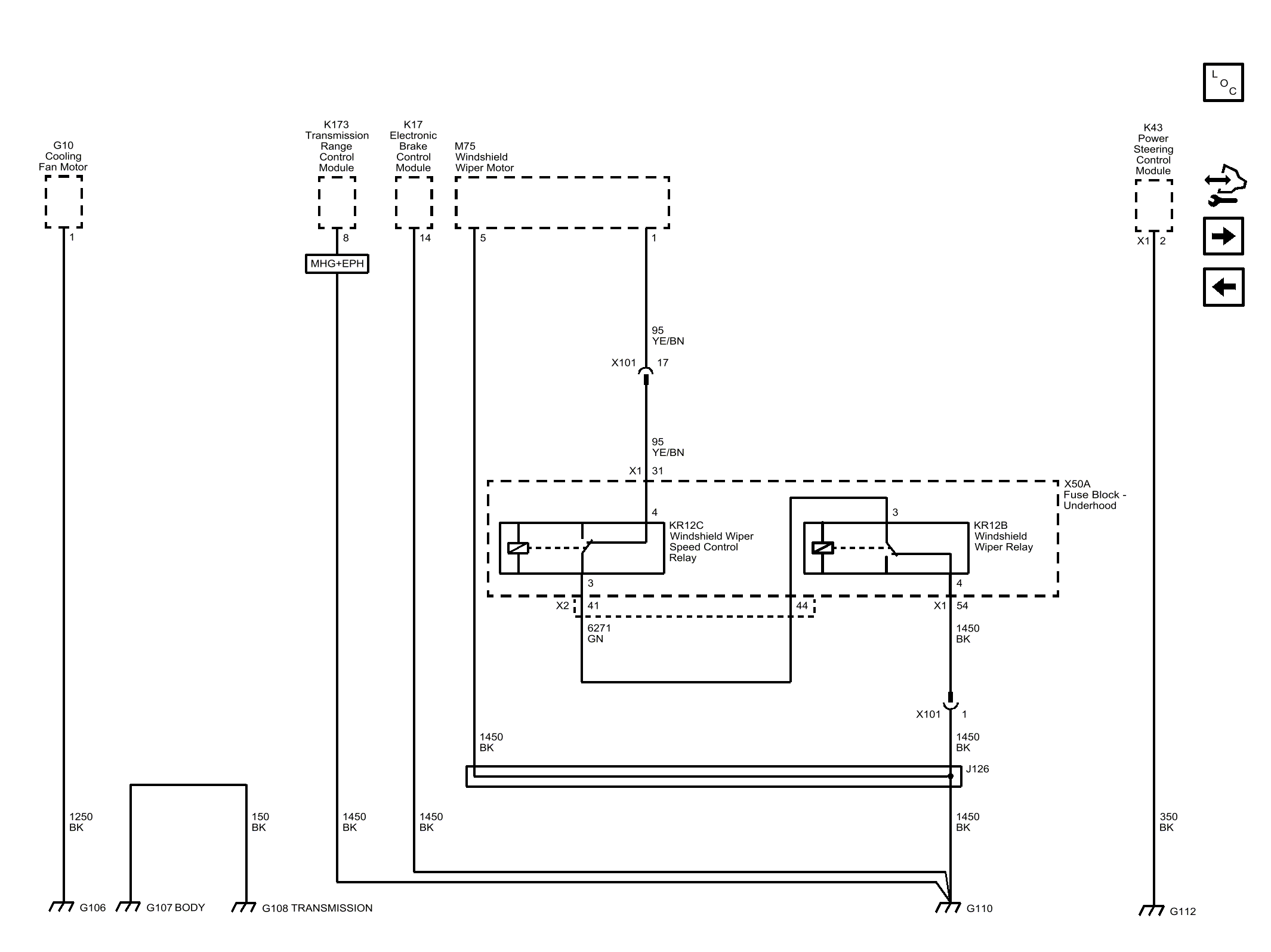

Home >> Chevrolet >> 2018 >> Equinox L >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics >> G106, G107, G108, G110, and G112
