Ground Distribution Wiring Schematics: G101

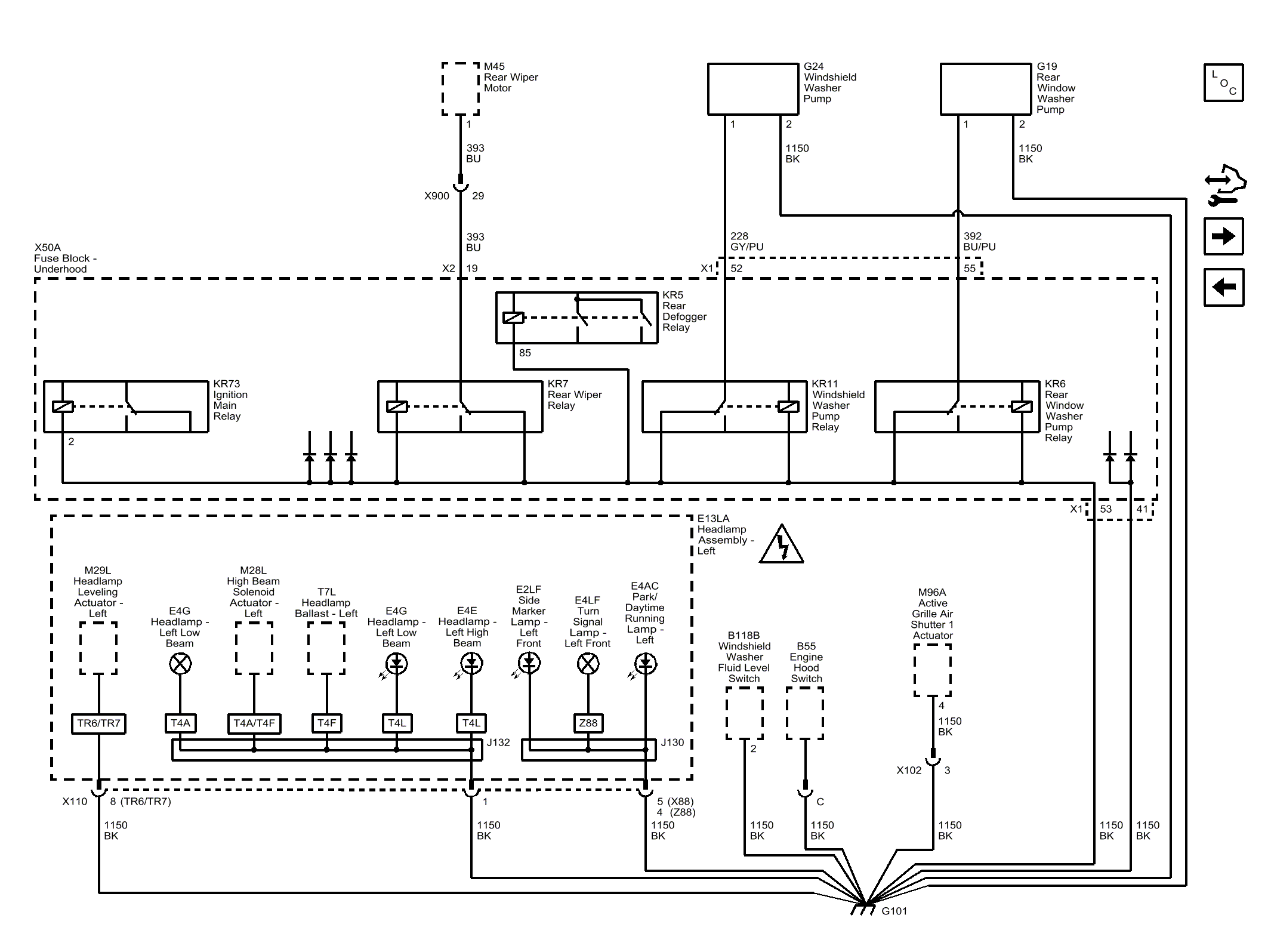

Fig 1: G101

GM4598088

Courtesy of GENERAL MOTORS COMPANY
