Rear Body Fuse Block Replacement (Terrain)

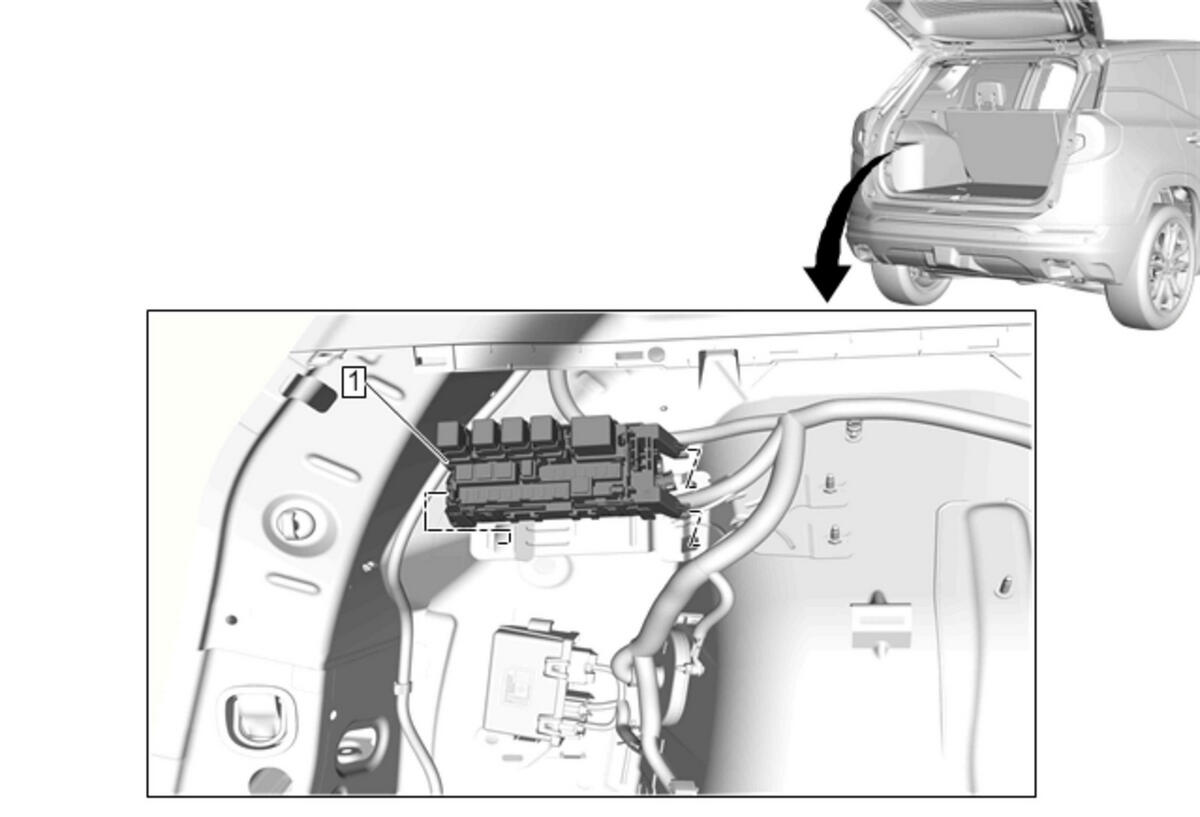

Fig 1: Rear Body Fuse Block (Terrain)
GM4692452Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
  2. Remove the left side quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)
1 Rear Body Fuse Block

Procedure

  1. Release the rear retainer tab.
  2. Rotate the rear fuse block up and back to remove the fuse block from the bracket.
  3. Release the fuse block terminals. Refer to Terminal Removal
  4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
NOTE:

The rear fuse block is part of the body harness.
