Ignition And Start Switch Replacement (Terrain)

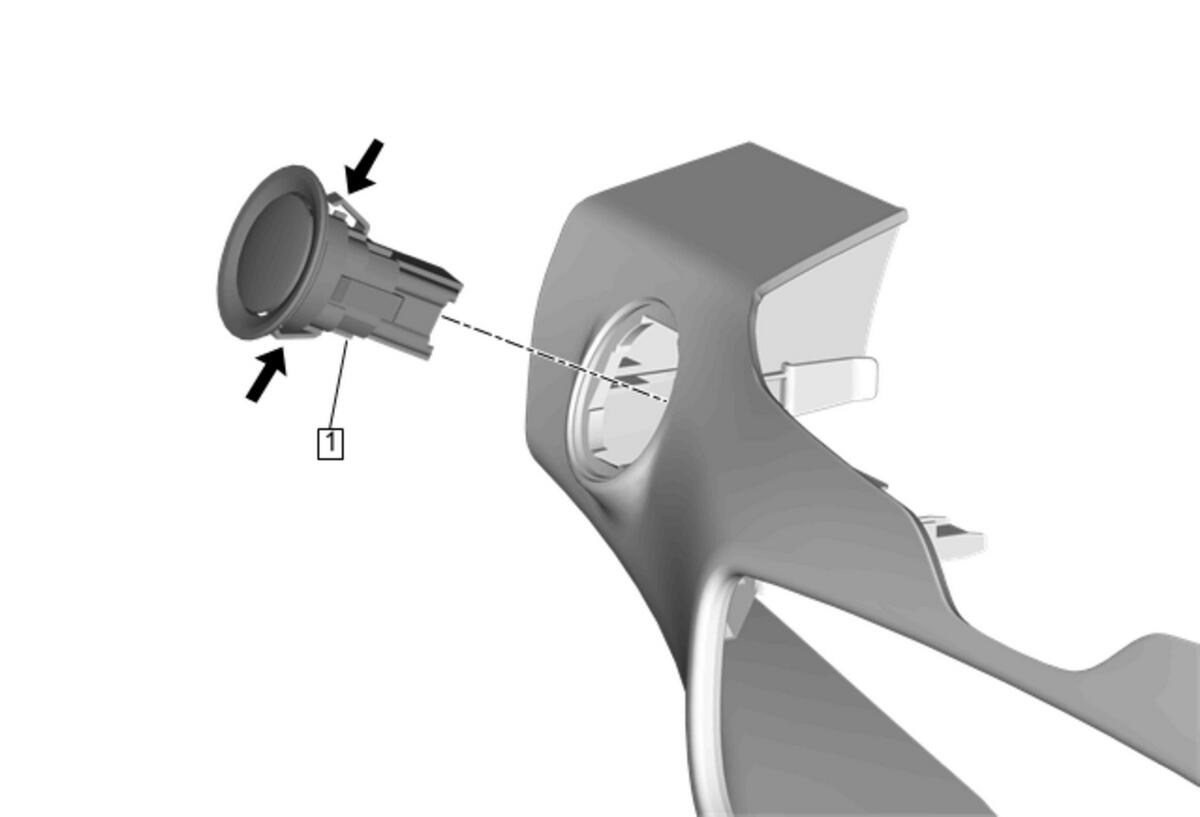

Fig 1: Ignition And Start Switch (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Instrument Panel Trim Pad - Right Side. Refer to Instrument Panel Trim Pad Replacement - Right Side (Terrain)
1	Ignition and Start Switch Procedure  Squeeze the retaining tabs and push the ignition and start switch out of the trim piece.
