Instrument Cluster Replacement (Terrain)

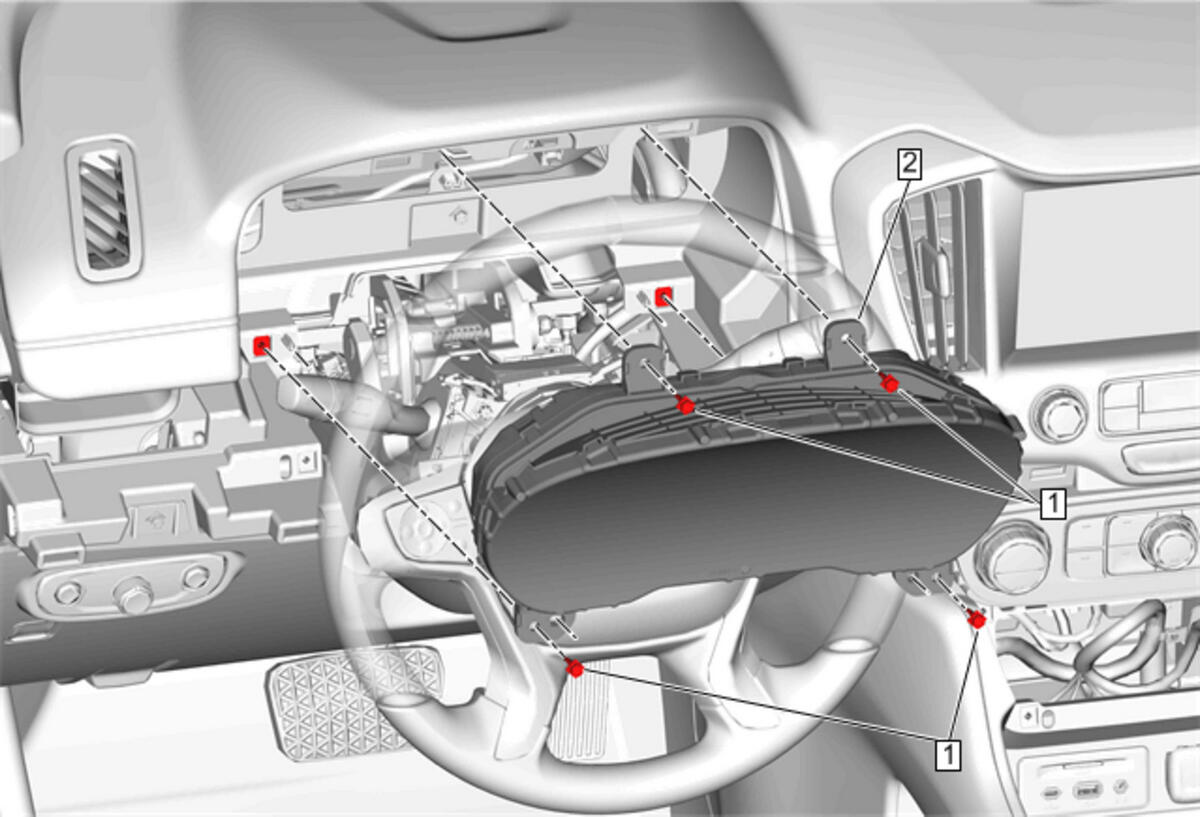

Fig 1: Instrument Cluster (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Cluster Trim Plate Replacement (Terrain)
1	Instrument Cluster Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Instrument Cluster Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster

Procedure
